REAR LOADING SYSTEMS

Olympus
Olympus

Our world-renowned Olympus. Available as 2.2m Narrow and 2.5m Wide variants, with capacities from 10-27m³ and compaction ratios up to 7:1. It's a hard wearing and established design.



Olympus Narrow
Olympus Narrow

Olympus 2.2m Narrow with capacities from 10-19m³ and compaction ratios up to 7:1. It's a hard wearing and an established robust design.



Olympus with Crane
Olympus with Crane

Olympus Wide with a rear mounted chute and a crane to empty underground containers



Olympus Mini
Olympus Mini

Carrying forward the genes of the Olympus the Mini is ideally suited to collections in narrow areas and for satellite operations. Capacities from 6-8m3



Olympus AЯT
Olympus AЯT

Olympus for Asian, Russian and Transcontinental operations. Available as 2.2m Narrow and 2.5m Wide variants, with capacities from 10-27m³ and compaction ratios up to 7:1.



Olympus Mini AЯT
Olympus Mini AЯT

Olympus MINI for Asian, Russian and Transcontinental operations. Carrying forward the genes of the Olympus the Mini is ideally suited to collections in narrow areas. Capacities from 6-10m3

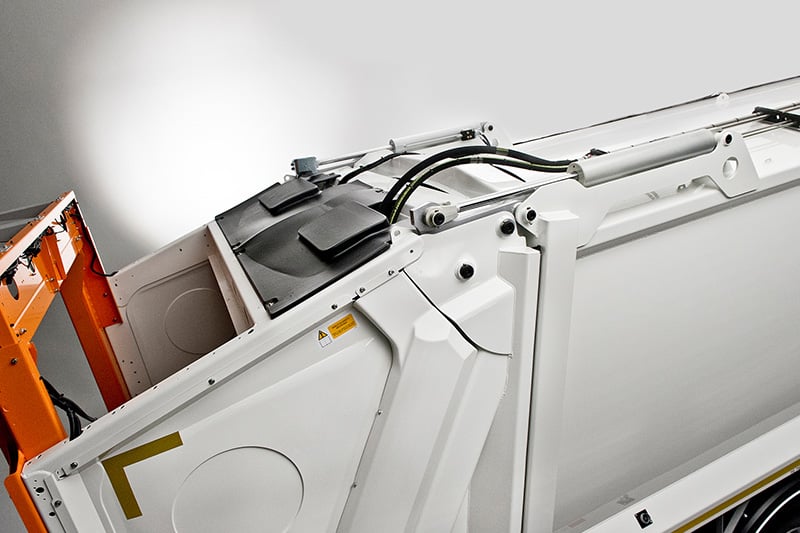

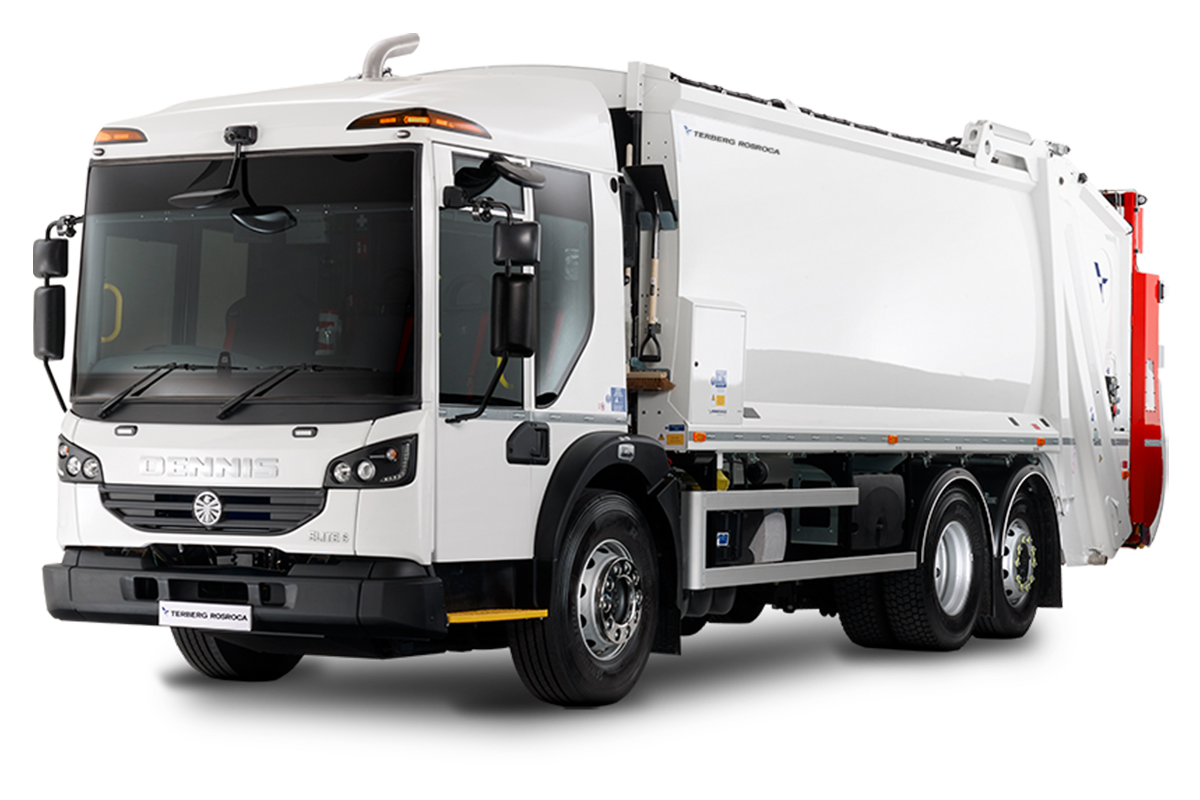

Olympus

Our world-renowned Olympus. Available as 2.2m Narrow and 2.5m Wide variants, with capacities from 10-27m³ and compaction ratios up to 7:1. It's a hard wearing and established design.

Olympus single compartment is used for handling single waste streams, but its versatility makes it ideal for collecting more than one type waste on rotation, including domestic refuse, different types of recycling and garden waste. With a smooth-sided one piece construction, keel shaped body floor, high strength tailgate and efficient hydraulic system, maximum payload is achieved every time, whatever type of waste stream being collected. The body is well known for its low cost of ownership.

SPECIFICATIONS

  • Volume: 10 - 27m³
  • Overall body length (std. tailgate): 4725 - 7875mm
  • Overall Body width: 2230 or 2530mm
  • GVW: 18-32 tonnes
  • Compaction Cycle Time, Nominal: 18 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): 2.58 m³
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 2.22 m³
  • Hydraulic Requirements: 88 l/min
  • Operating pressure: 230 bar

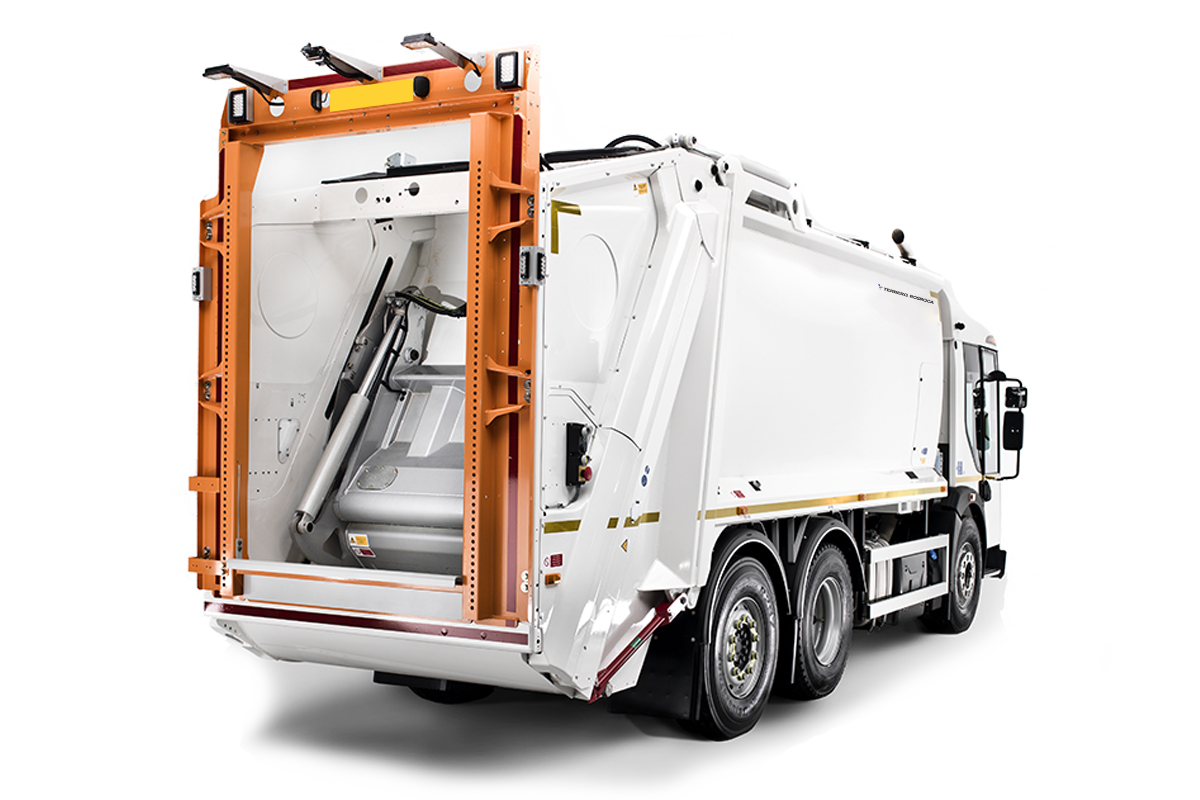

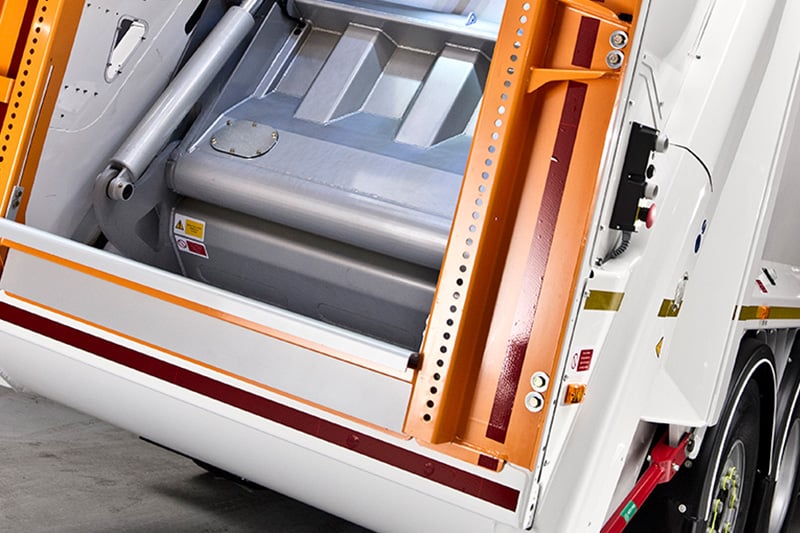

Olympus Narrow

Olympus 2.2m Narrow with capacities from 10-19m³ and compaction ratios up to 7:1. It's a hard wearing and an established robust design.

Olympus single compartment is used for handling single waste streams, but its versatility makes it ideal for collecting more than one type waste on rotation, including domestic refuse, different types of recycling and garden waste. With a smooth-sided one piece construction, keel shaped body floor, high strength tailgate and efficient hydraulic system, maximum payload is achieved every time, whatever type of waste stream being collected. The body is well known for its low cost of ownership.

SPECIFICATIONS

  • Volume: 10 - 19m³
  • Overall body length (std. tailgate): 4725 - 6775mm
  • Overall Body width: 2230mm
  • GVW: 18-32 tonnes
  • Compaction Cycle Time, Nominal: 18 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): N/A
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 2.22 m³
  • Hydraulic Requirements: 70 l/min
  • Operating pressure: 230 bar

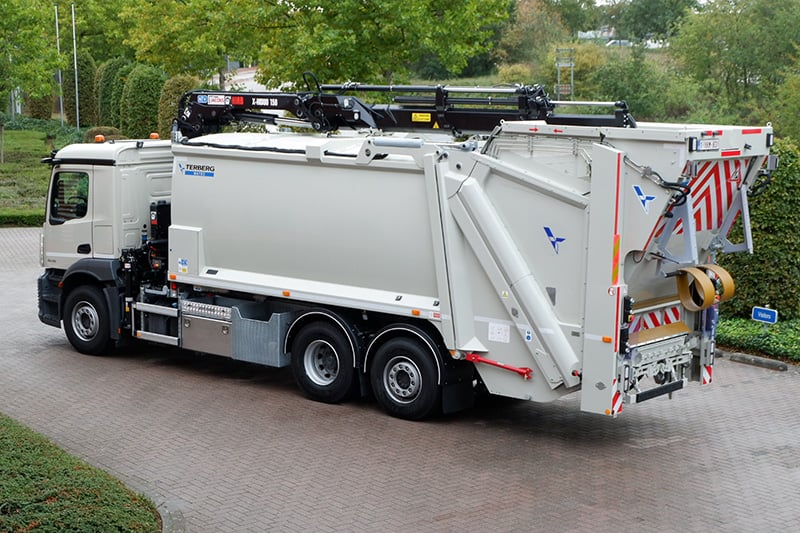

Olympus with Crane Chute

Olympus Wide with a rear mounted chute and a crane to empty underground containers



Contact Sales

Our dependable Olympus AЯT body configured with Crane for the collection of large volume containers. Olympus AЯT with Crane offers a robust solution for a wide range of containers. The Crane head can be configured with a range of attachments to suit the containers being handled.

The addition of a rear chute enables the Olympus Wide to empty underground containers with a crane. The crane mounting can be on the chassis or on the roof of the body.



  • Choice of chute to suit different underground systems
  • Crane control integrated with Olympus
  • Compatible with most crane manufacturers
  • Crane can be mounted on Olmpus roof or on the chassis infront of body
  • Underground container safety system intergration with Olympus
  • Automatic or manual binlift options
SPECIFICATIONS

  • Volume: 13 - 27m³
  • Overall body length (std. tailgate): 4975 - 7875mm
  • Overall Body width: 2530mm
  • GVW: 18-32 tonnes
  • Compaction Cycle Time, Nominal: 18 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): 2.58 m³
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): N/A
  • Hydraulic Requirements: 88 l/min
  • Operating pressure: 210 bar

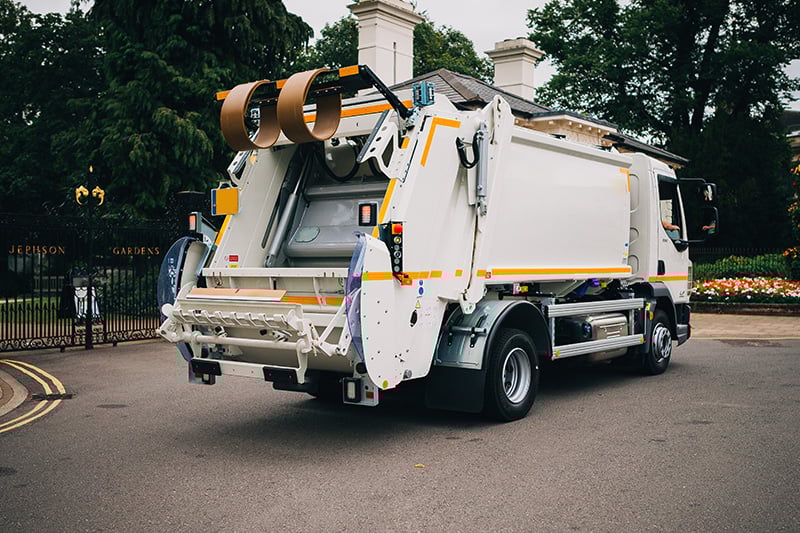

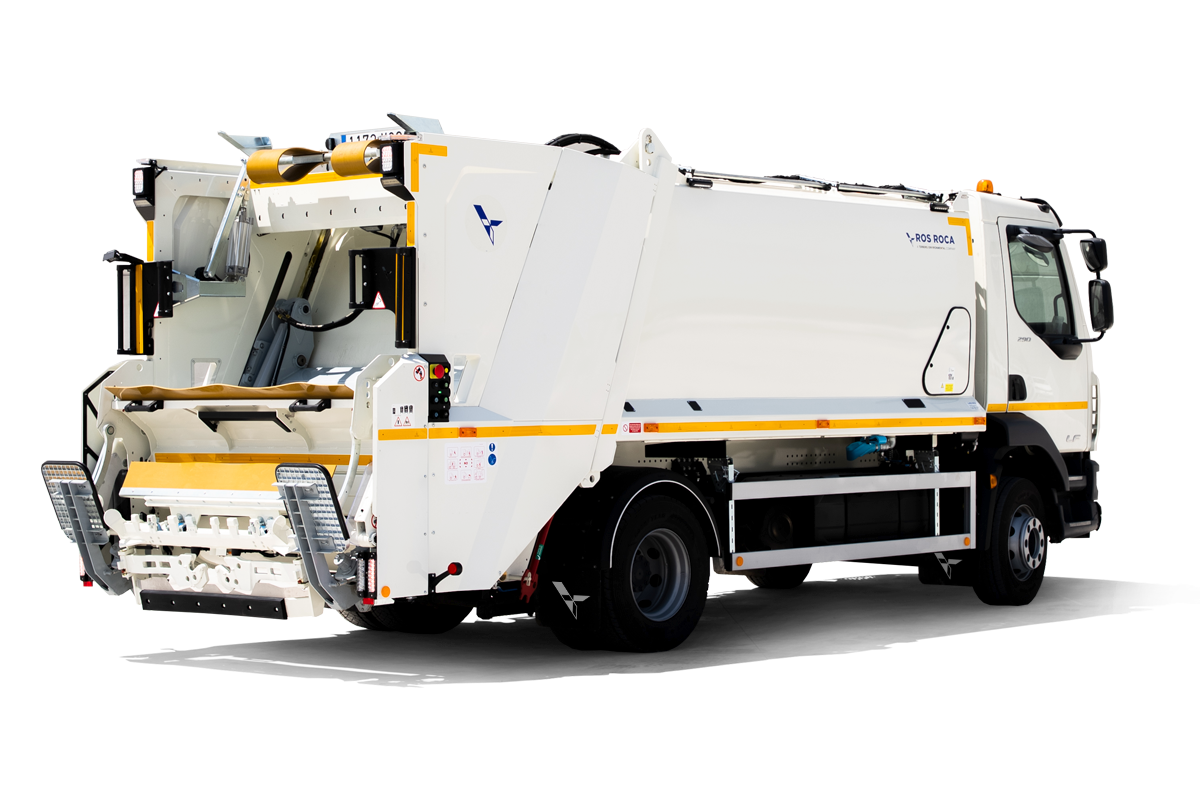

Olympus Mini

Carrying forward the genes of the Olympus the Mini is ideally suited to collections in narrow areas and for satellite operations. Capacities from 6-8m3.



Contact Sales

Olympus Mini is a compact rear loading refuse compaction vehicle. Olympus Mini is ideal for the collection of domestic and organic waste as well as recycling materials.

Its compact but capable size makes it perfect for pedestrian, city centre and rural areas with narrow streets and restricted access that requires a high level of manoeuvrability. Compact and with proven technology, Olympus Mini offers high quality and reliability.

SPECIFICATIONS

  • Volume: 6 / 7 / 8m³
  • Overall body length (std. tailgate): 4030 / 4430 / 4830mm
  • Overall Body width: 2000mm
  • GVW: 7.5 - 12 tonnes
  • Compaction Cycle Time, Nominal: 15 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): N/A
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 1 m³
  • Hydraulic Requirements: 60 l/min
  • Operating pressure: 170 bar



YYYNNNN Bin Icon Strip.svg

Olympus Mini can be mounted to a small chassis from 7.5-11t with 12v or 24v electrical systems.

The intergral multi purpose binlift is suitable for two and four wheel containers and is specially designed for domestic waste collections with manual operation by push button controls. Lifting is by the bin lifting comb designed in accordance with EN1501 incorporating bump loops to cushion the bin as it empties. Optional DIN arms are available.

You'll benefit from fast loading times and an auto pack and sweep cycle.

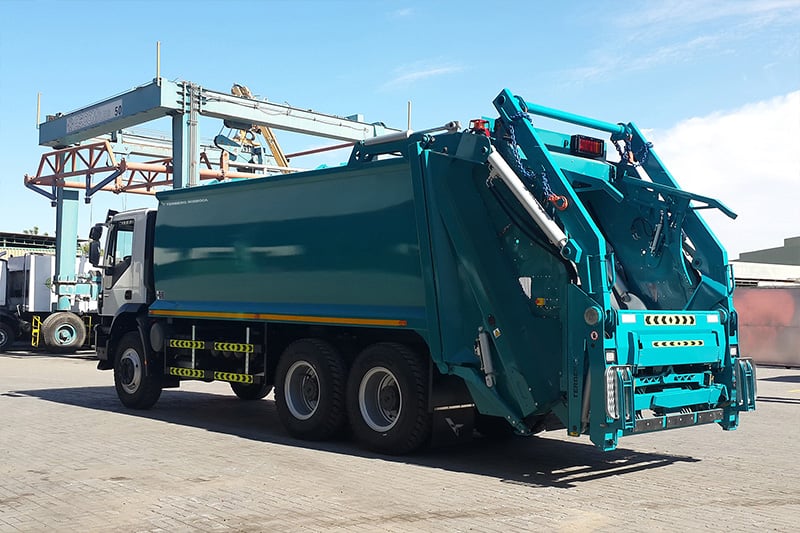

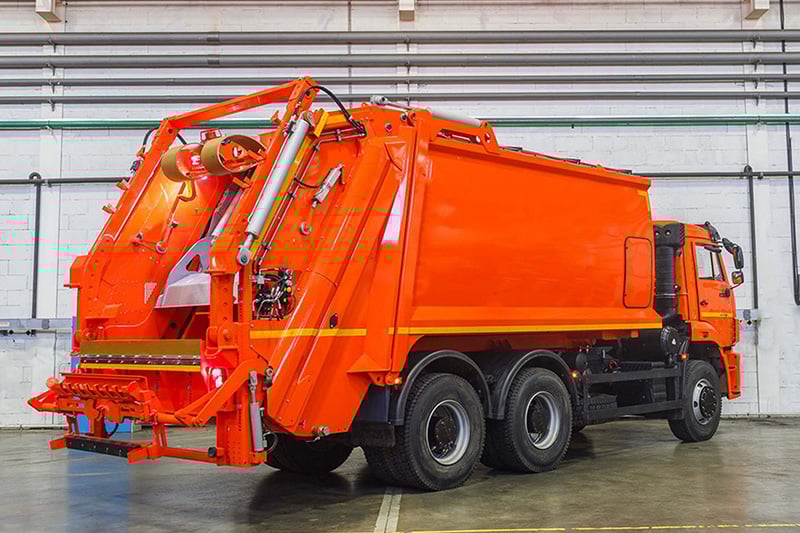

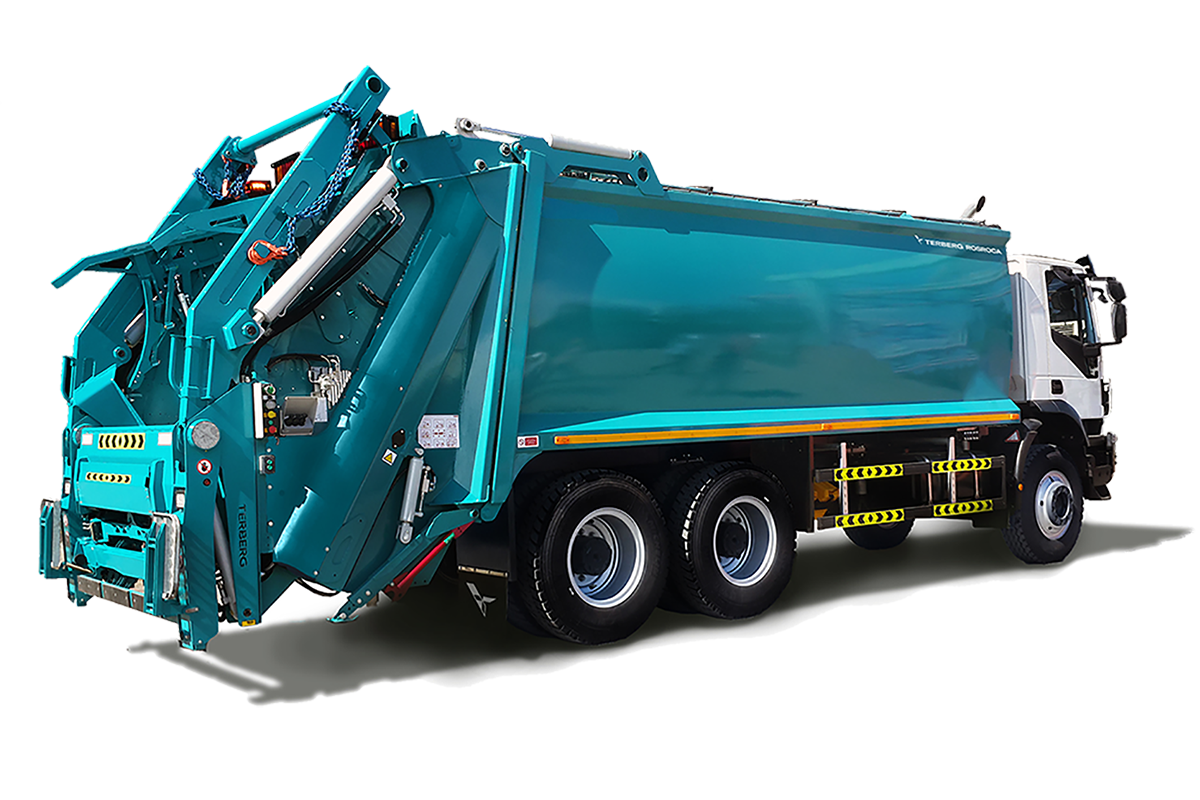

Olympus AЯT

Olympus for Asian, Russian and Transcontinental operations. Available as 2.2m Narrow and 2.5m Wide variants, with capacities from 10-27m³ and compaction ratios up to 7:1.

Olympus ART is specifically developed for operation in countries globally. With proven service in Asia, Africa, GCC, Russia and LATAM markets; coupled with one of our bin lifts Olympus ART changes perceptions of waste collection around the world. Offering exceptional value, Olympus ART provides solid performance, robust build and comprehensive aftermarket support. Note: This product is specifically engineered for use out of Europe. Olympus ART encompasses many design elements suited to overseas operations, it is therfore not wholly complaint to EN1501 norm, which is required inside Europe.

SPECIFICATIONS

  • Volume: 10 - 27m³
  • Overall body length (std. tailgate): 4725 - 7875mm
  • Overall Body width: 2230 or 2530mm
  • GVW: 18 - 40 tonnes
  • Compaction Cycle Time, Nominal: 18 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): 2.58 m³
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 2.22 m³
  • Hydraulic Requirements: 88 l/min
  • Operating pressure: 180 bar

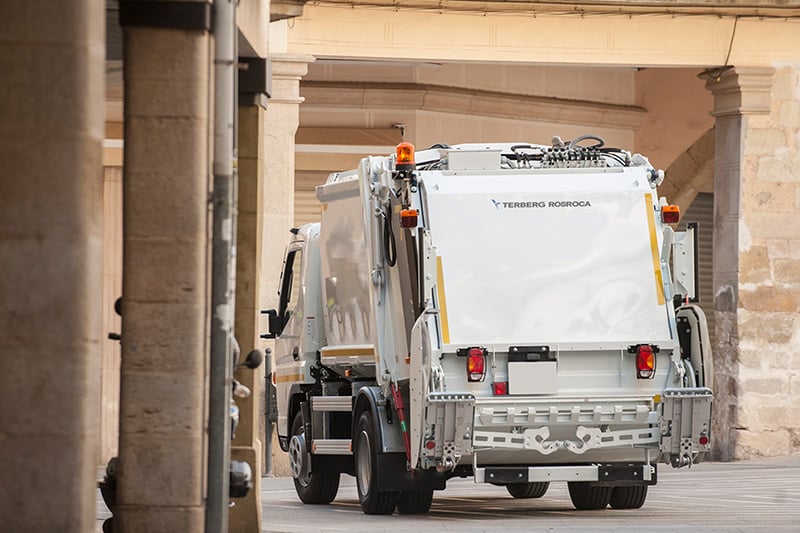

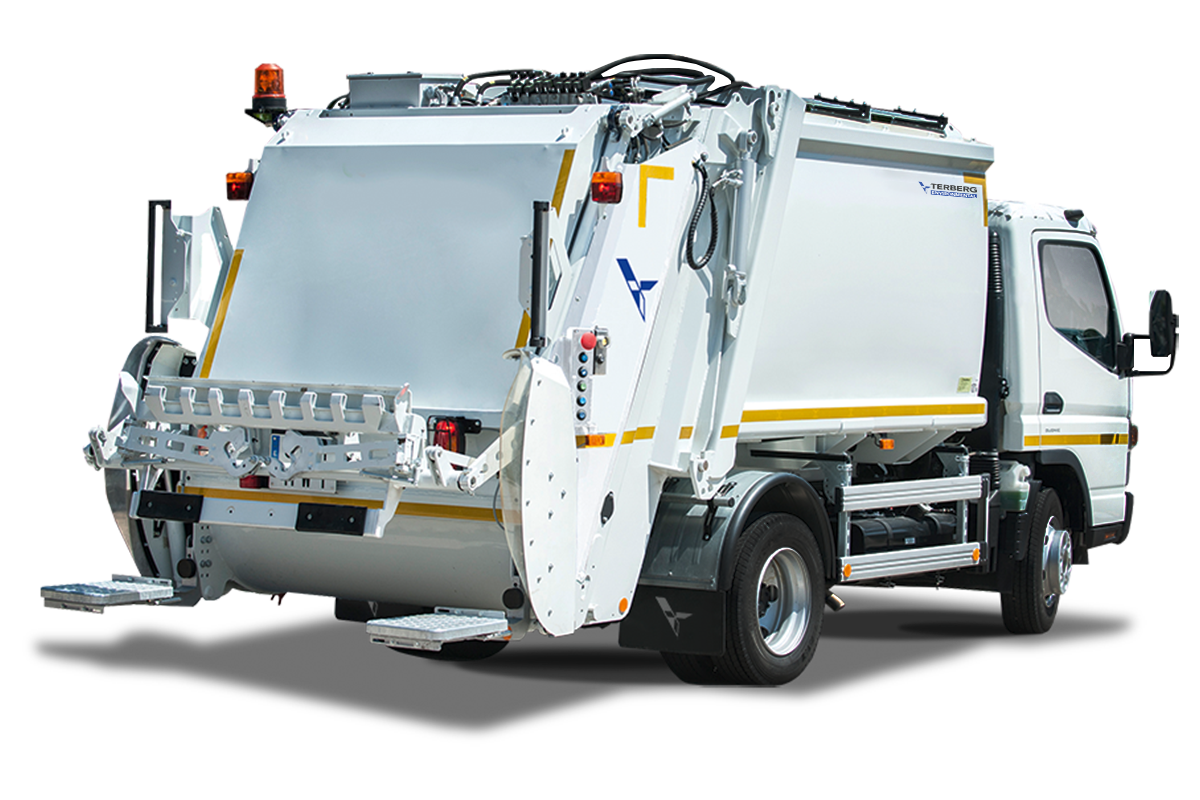

Olympus Mini AЯT

Olympus MINI for Asian, Russian and Transcontinental operations. Carrying forward the genes of the Olympus the Mini is ideally suited to collections in narrow areas. Capacities from 6-10m3



Contact Sales

SPECIFICATIONS

  • Volume: 6 - 10m³
  • Overall body length (std. tailgate): 4030 to 5487 mm
  • Overall Body width: 2000mm
  • GVW: 7.5 - 12 tonnes
  • Compaction Cycle Time, Nominal: 15 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): N/A
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 1 m³
  • Hydraulic Requirements: 60 l/min
  • Operating pressure: 170 bar



YYYNNNN Bin Icon Strip.svg

Specifically developed for operation in Asia, Africa, GCC, Russia and LATAM markets Olympus Mini ART is a rear loading refuse compaction vehicle for the collection of domestic and organic waste as well as recycling materials in pedestrian, city centre and rural areas with narrow streets and restricted access that requires a high level of manoeuvrability. Compact and with proven technology, Olympus MINI ART offers high quality and reliability. Note: This product is specifically engineered for use out of Europe. Olympus MINI ART encompasses many design elements suited to overseas operations, it is therfore not wholly complaint to EN1501 norm, which is required inside Europe.
