Organic Waste Collection

ORGANIC AND FOOD WASTE COLLECTION

Our bodies are built from tough recyclable polypropylene and corrosion resistant aluminium, all developed to handle food waste collections.

PBUV

Polymer bodied solution for low to mid volume organic waste collections



ABTL

Lightweight aluminium body for multi-material collection ideal for biowaste, food waste and glass.

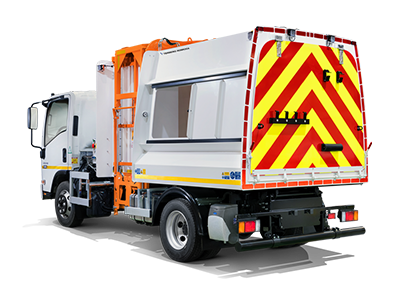

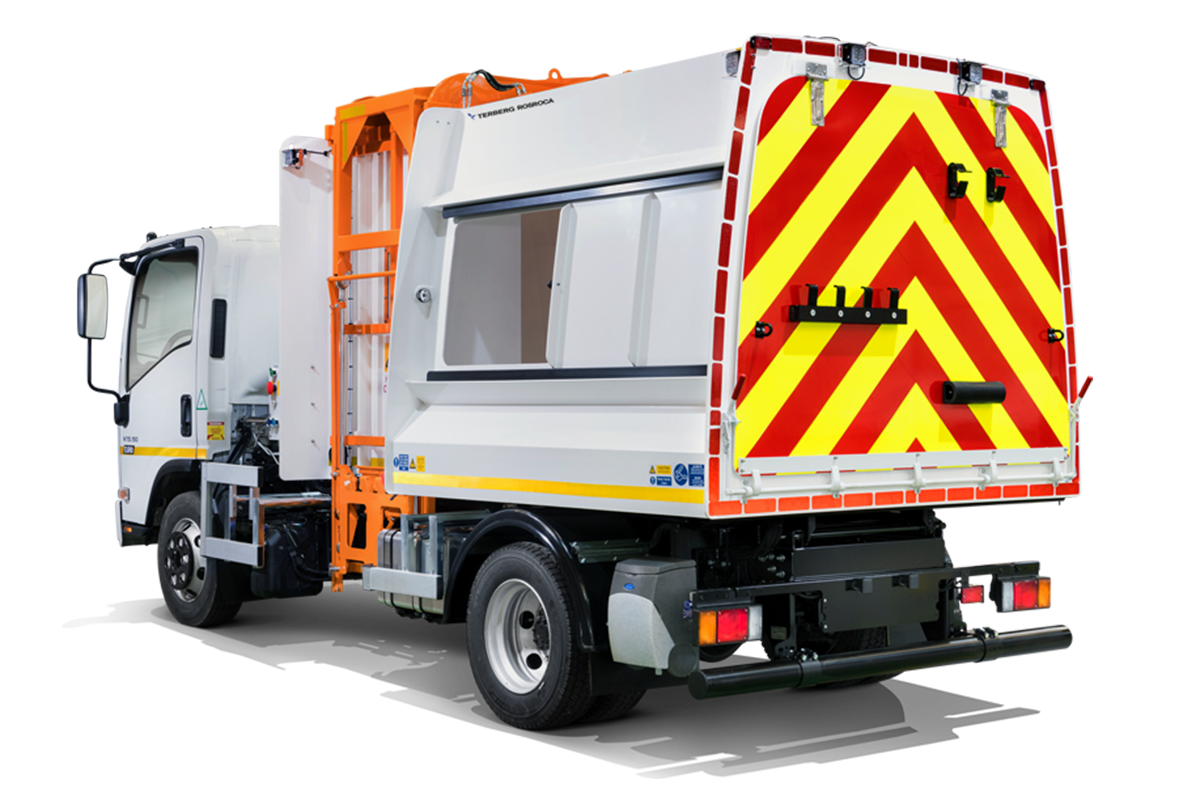

PBUV

A perfect polymer bodied solution for low to mid volume organic waste collections



PBUV is part of a range of solutions developed for the tough demands of food and other organic waste collections, providing easily cleaned, robust solutions that will carry the materials safely in accordance with all relevant regulations.



Contact Sales

The PBUV is perfect for where maximum payload versus body weight is essential and surprisingly, the PBUV body is constructed from a robust Polypropylene material. As well as being able to withstand daily steam cleaning, the body won't corrode and is leakproof to a height of 300mm.

SPECIFICATIONS

  • Volume: 6.5 to 8.5m³
  • Wheelbase: 3504 to 3365mm
  • GVW: 3.5 to 7.5 tonnes
  • Axle Configuration: 4x2
  • Overall Length: 5650mm
  • Overall Width: 2100 to 2200mm
  • Compartments: 1
  • Internal doors: N/A
  • Number of lifts: Up to 1 x TLL360 lift
  • Sound reduction kit: N/A

Additionally, materials can be hand loaded into the body via the side mounted sliding hatches.

The PBUV is available in two sizes with the larger 8.5 cubic metre volume version on a 7.5 tonne GVW chassis giving a typical usable payload of 2750 kgs*.

*typical payload when mounted to Isuzu N75.190 7.5 tonne GVW 4 x 2 chassis

PBUV comes with a tipping body for simple discharge of materials. Terbergs own underfloor tipping gear allows simple and safe discharge of the load collected by opening the rear door and tipping the PBUV’s body.



Food Waste Icon.png

FOOD WASTE

Bio Waste Icon.png

BIO
WASTE

AHP Icon.png

AHP

Canine Waste Icon.png

CANINE WASTE

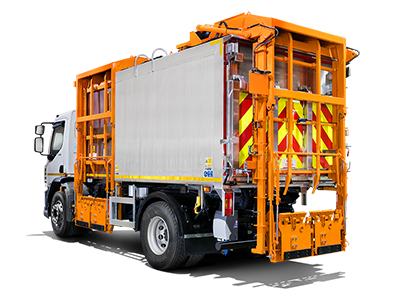

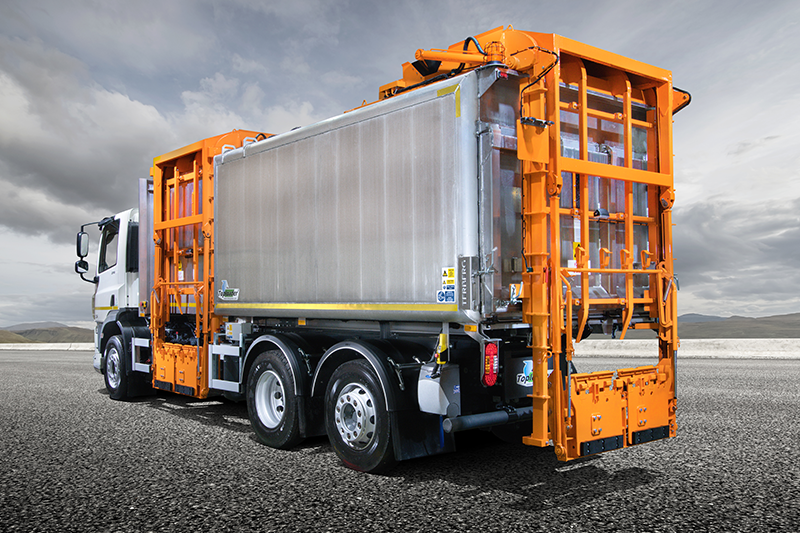

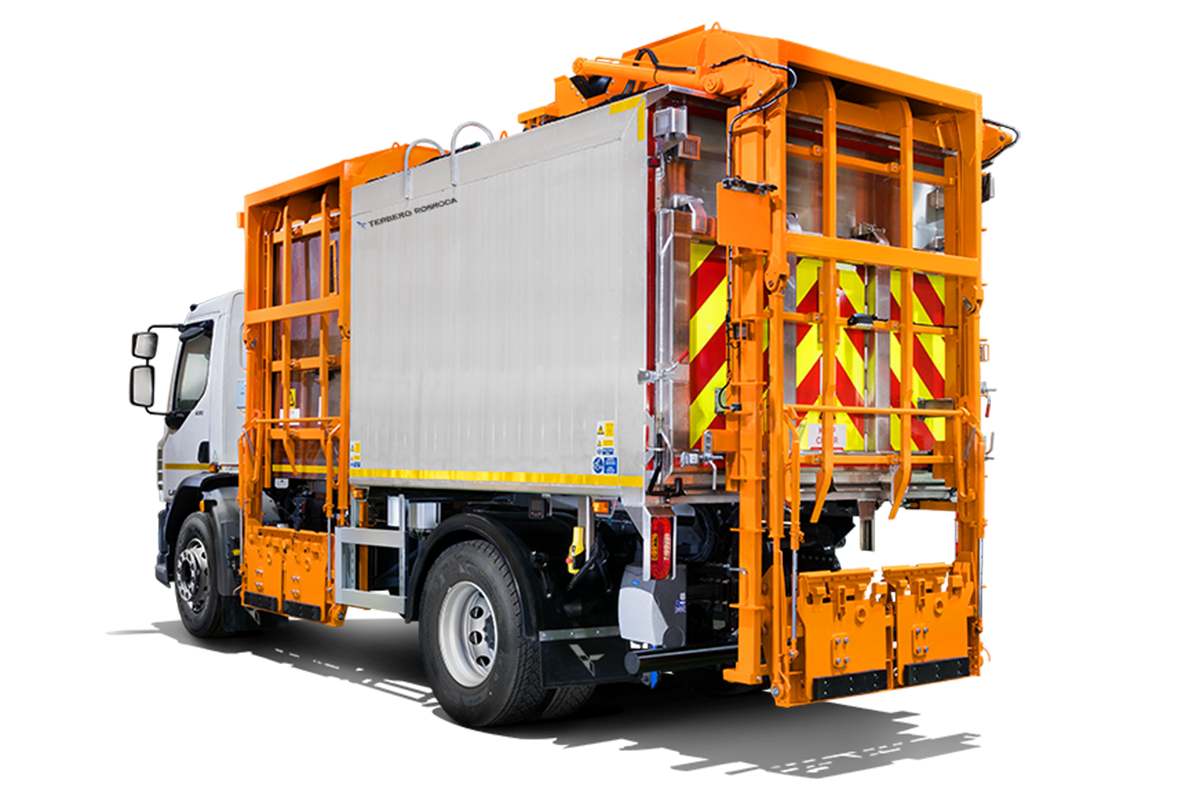

ABTL

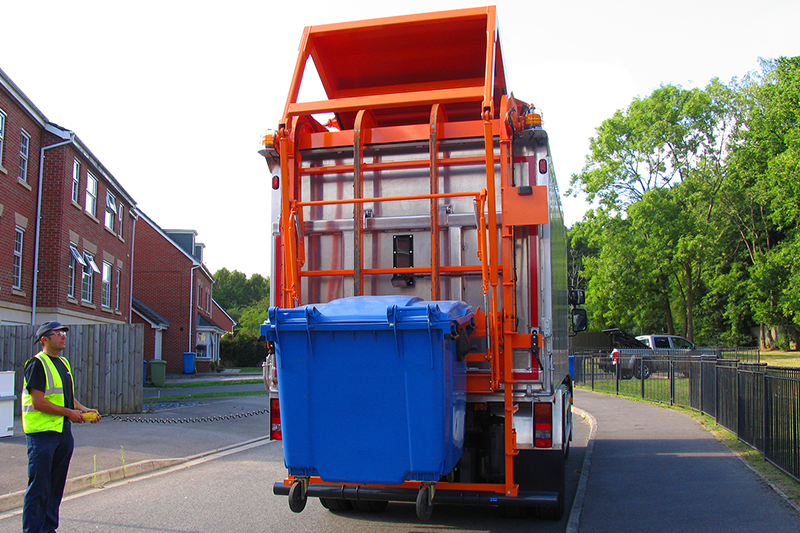

The ABTL (Aluminium Bodied Toploader) range of 'Bring Scheme' multimaterial collection vehicles, is the ideal choice for Biowaste, food waste and glass collections.

The ABTL range offers solutions that segregate, and keep segregated, recyclables at the source to provide you with high purity material streams that require no further processing following collection and safe transportation.
The extensive product ABTL portfolio represents an excellent selection of base models with various options that allow you to customise the product to provide a tailored solution to achieve your operational objectives.
The aluminium body construction ensures excellent payloads are achieved and with fully welded seams and anti-corrosive properties, the ABTL has all the attributes required for the collection and transportation of wet materials.



Key Features & Benefits;

  • Lightweight aluminium plank construction to maximise payload
  • Sealed doors and seam welded body to prevent leakage
  • Operator health and safety assured thanks to a fully controlled tip cycle, certified E-stops, powered rear doors, hydraulic safety valves,
    powered internal door locks and ergonomic in-cab controls
  • Standard TLL1280 or TLL360 lifts for robust and safe operation
  • Turnkey integrated body and lift design
  • Optional integrated weighing solution
SPECIFICATIONS

  • Tank Volume: 5500 - 12000 l
  • Water Pump Capacity: 122 l/min at 120 bar
  • Fresh / Dirty Water Capacity: 5500 / 5500l,
    7000 / 7000l,
    8000 / 8000l,
    12000 / 12000l
  • Bin Lift Construction: 304 grade stainless steel
  • Washing compartment lining: 304 grade stainless steel
  • Water Temperature: Cold



Food Waste Icon.png

FOOD
WASTE

Bio Waste Icon.png

BIO
WASTE

Multi Material Icon.png

MULTI
MATERIAL










PROVIDING THE GLOBAL WASTE AND RECYCLING INDUSTRY WITH ROBUST, RELIABLE, EFFICIENT AND INNOVATIVE ECO-TECHNOLOGY
