BIN LIFTING SYSTEMS: LOW LEVEL AUTOMATIC

OmniDEL
OmniDEL

Our best selling low level fully automatic binlift solution



OmniDEL (E)

Electrically powered version of the OmniDEL



OmniDEL Triple

Low level fully automatic triple split bin lift system



OmniDEL Triple E
OmniDEL Triple (E)

Electric version of our Low level fully automatic triple split bin lift system



OmniDEL FW

A Full width superbly capable variant on the standard OmniDEL



OmniMax

A solution with the flexibility to safely handle an impressive range of containers



OmniMAX (E)
OmniMax (E)

Terberg's OmniMAX (e) has been developed from the ground up to seamlessly integrate into our Olympus body



Viking

A bin lift especially designed for the Olympus Twinpack

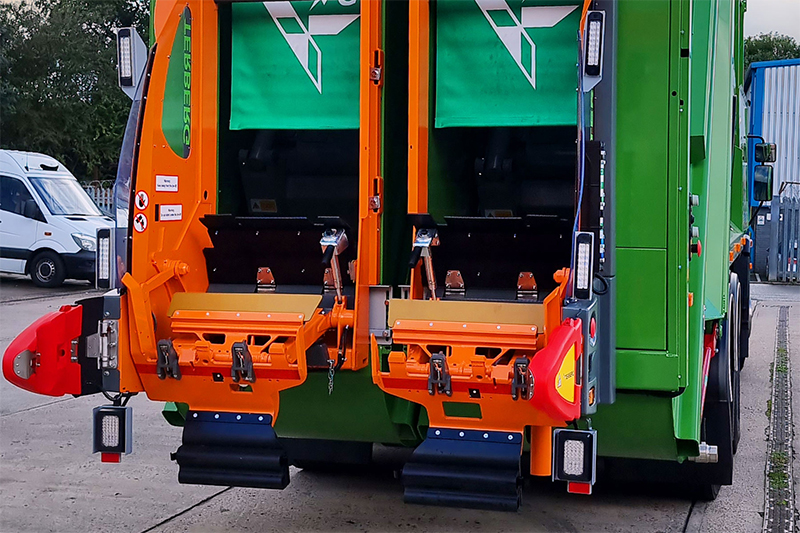

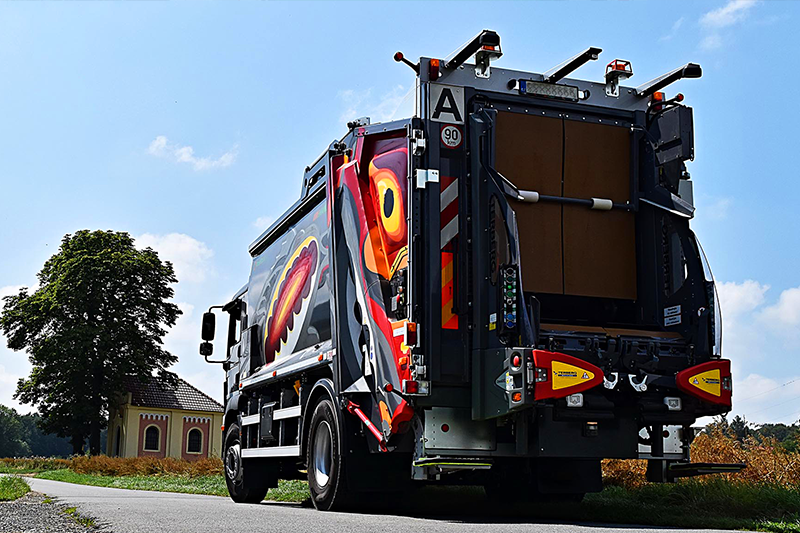

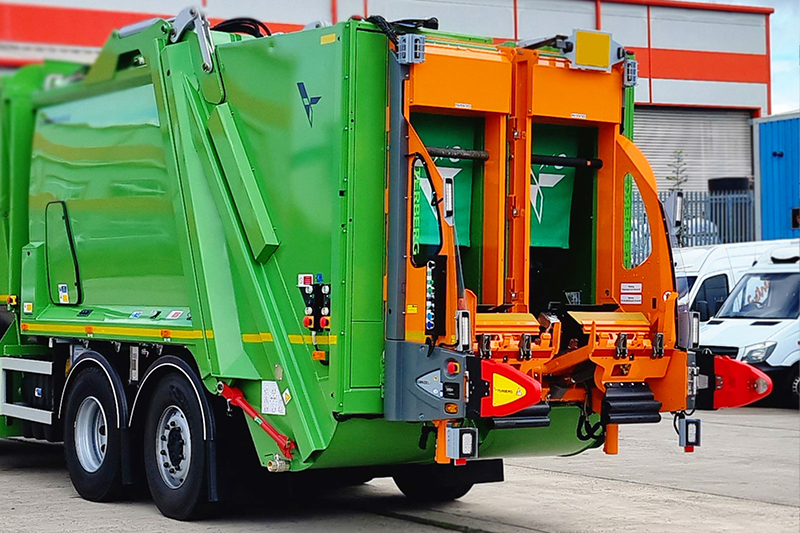

OmniDEL

The OmniDEL represents our best selling low level fully automatic binlift solution, our subsidiaries and dealers worldwide deliver in excess of 800 into service each year and with good reason.



Contact Sales   Electric Model

OmniDEL Bin Lifting System - Terberg RosRoca

Offering robust build, minimal maintenance and a safe operation synonymous with the Terberg brand the OmniDEL offers twin split lifting chairs that are perfect for high volume, high density urban collections of two-wheeled bins. OmniDEL also switches seamlessly to 4-wheel commercial container mode to enable emptying of larger containers thanks to our intelligent, time-saving 4-wheel recognition and Auto Gather features.

The OmniDEL employs unique Terberg geometry that delivers a super steep container discharge angle of 50° ensuring that most materials are discharged first time, our intelligent sonar sensor bin-shaking function activates automatically to remove any "sticky" materials should this not happen.

SPECIFICATIONS

  • 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 500kg (linked)
  • Noise Level: < 65 dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 595 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes



YYYNNNN Bin Icon Strip.svg

Additionally, the same unique geometry ensures there is no 'kick out' of the container towards the operator when lifting cycle  starts and the OmniDEL comes as standard a drop down hopper plate to enable hand-loading and a single point greasing system to reduce maintenance times.

The OmniDEL is the best available low level automatic solution for all RCV bodies including our Olympus range of RCVs.

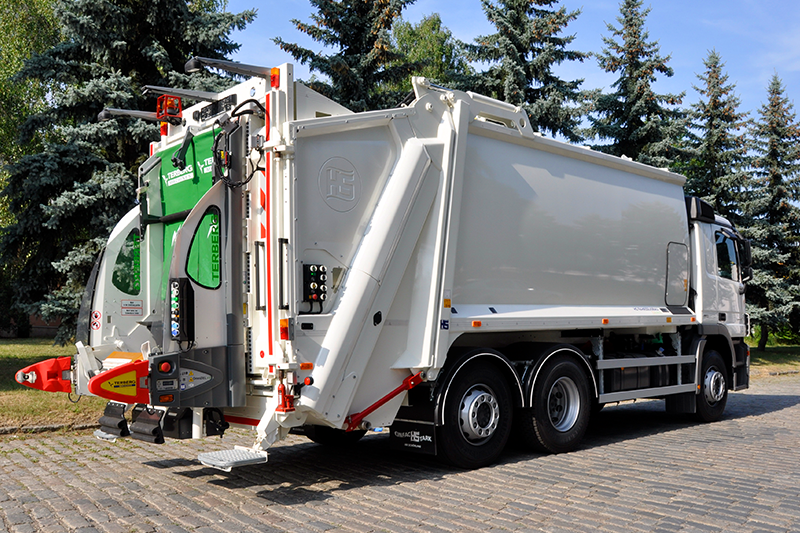

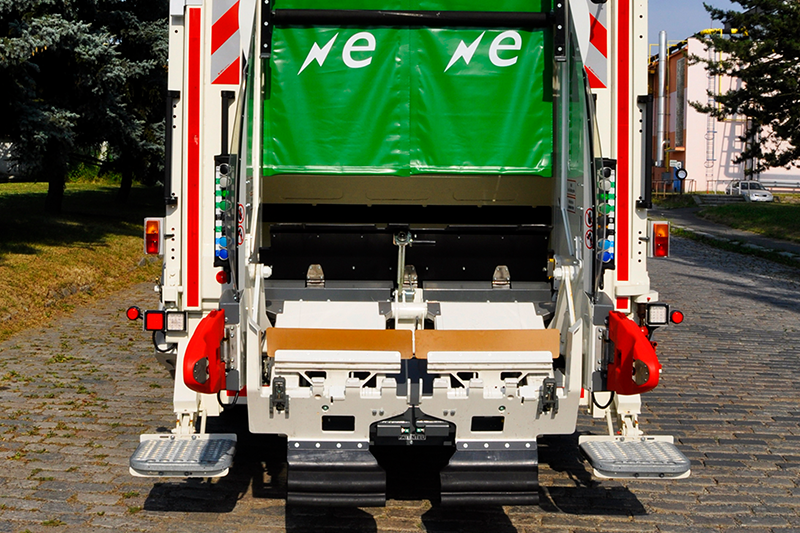

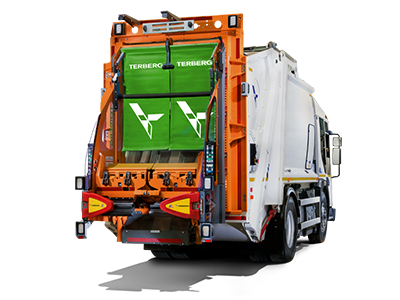

OmniDEL (E)

Low voltage electric, low noise & efficiency in one high density collection solution.

The OmniDEL (E) is the electrically powered version of the OmniDEL and collectively they represents our best selling low level fully automatic binlift solution. Our growing network of subsidiaries and dealers worldwide deliver in excess of 800 into service each year and with good reason.

With all the great features of its hydraulic brother but only requiring a 24v connection to the vehicle the OmniDEL (E) also comes with a super low noise rating makes it one of the quietest bin lifts available which is excellent news for households and collections crews alike.

Offering robust build, minimal maintenance and a safe operation synonymous with the Terberg brand the OmniDEL (E) offers twin split lifting chairs that are perfect for high volume, high density urban collections of two-wheeled bins. OmniDEL (E) also switches seamlessly to 4-wheel commercial container mode to enable emptying of larger containers thanks to our intelligent, time-saving 4-wheel recognition and Auto Gather features.

The OmniDEL (E) employs the same unique Terberg geometery that delivers a super steep container discharge angle of 50° for OmniDEL. This ensures that the majority of materials are discharged first time, for those troublesome "sticky" materials, our sonar sensor powered, intelligent bin-shaking function activates automatically effectively empty the container.

Additionally, the same unique geometry ensures there is no 'kick out' of the container towards the operator when lifting cycle starts and the OmniDEL (E) comes as standard a drop down hopper plate to enable hand-loading and a single point greasing system to reduce maintenance times.

The OmniDEL (E) is the best available low voltage, low noise, fuel saving, low level automatic solution for all RCV bodies including our Olympus range of RCVs.

SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 500kg (linked)
  • Noise Level: < 56dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 635 kg
  • Hydraulic Requirements: Self-contained system on binlift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

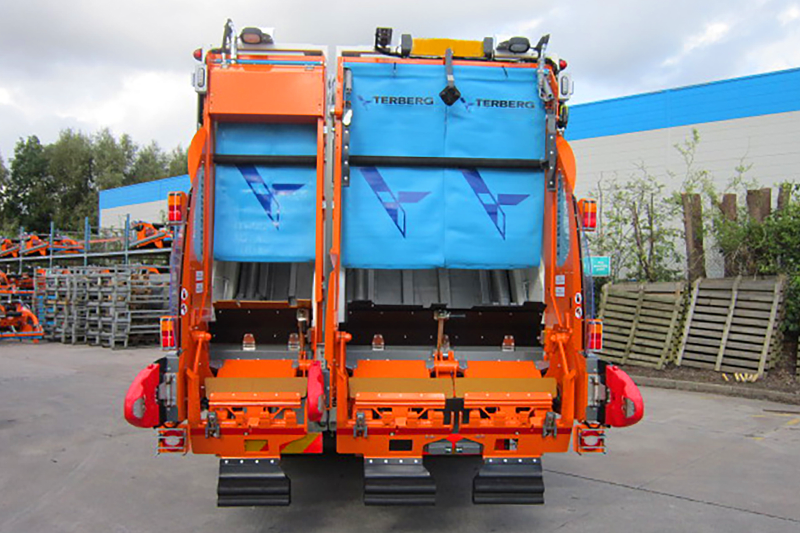

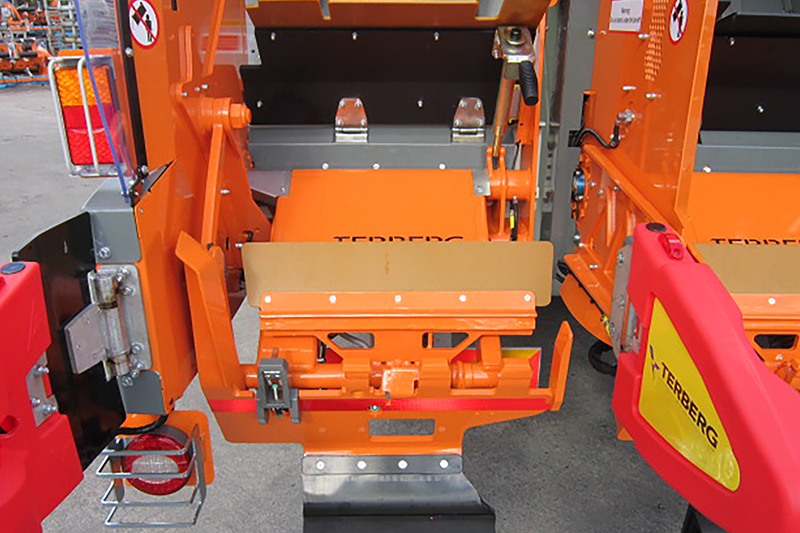

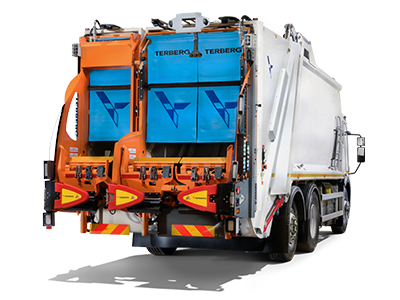

OmniDEL Triple

Our best-selling, low level fully automatic triple split bin lift system.

Developed to be the perfect partner to longitudinally split RCV compaction bodies, the OmniDEL Triple works harmoniously with 70/30 or 30/70 split bodies.

OmniDEL Triple offers a twin chair configuration providing fully automatic handling for 2-wheel bins on the 70% side complete with a time-saving 4-wheel auto gather mode to seamlessly switch the dual chair into a fully capable commercial 4-wheel container handling solution that switches back to automatic 2-wheel domestic mode when finished.

The single chair offers a superb fully automatic operation for 2-wheel bins being loaded into the 30% split of the RCV.

Both the single and dual sections of the OmniDEL Triple come as standard with intelligent automatic bin-shaking and drop down hopper plates to enable hand-loading.

The OmniDEL Triple is the best available low level automatic solution for all 70/30 split RCV bodies with a robust build, safe operation and minimal maintenance.

SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 500kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Terberg Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 800 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

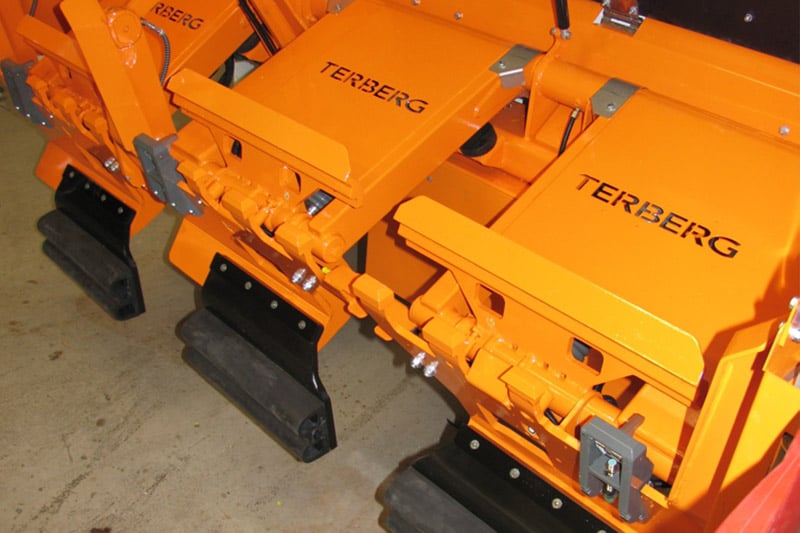

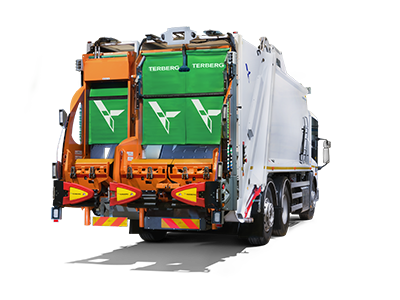

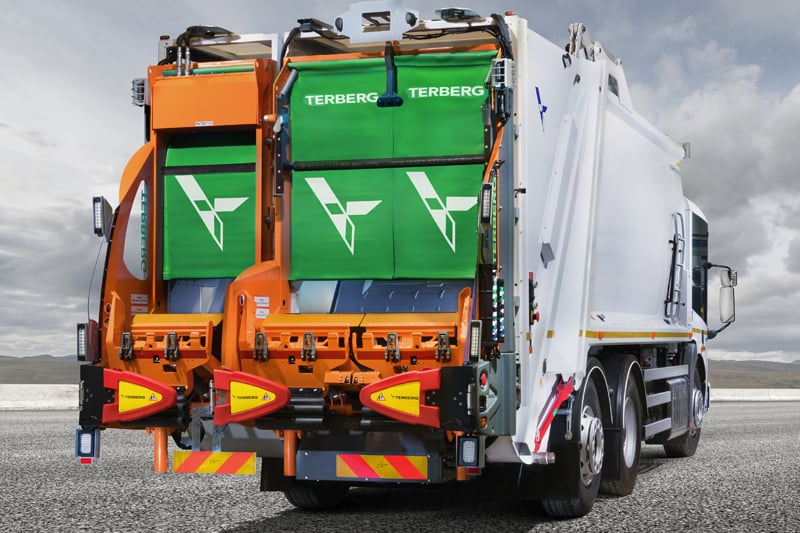

OmniDEL Triple (E)


Our electrically powered, fuel saving, low noise version of our best-selling, low level fully automatic triple split bin lift system.


With all the great features of its hydraulically powered brother, OmniDEL Triple (E) requires only a 24v connection to the vehicle and its low noise rating makes it ideal for residential collections.

A perfect partner to longitudinally split RCV compaction bodies, the OmniDEL Triple (E) works harmoniously with 70/30 or 30/70 split bodies.
OmniDEL Triple (E) offers a twin chair configuration providing fully automatic handling for 2-wheel bins on the 70% side complete with a time-saving 4-wheel auto gather mode.

Auto Gather seamlessly and automatically switches the dual chair into a fully capable commercial 4-wheel container handling solution that switches back to automatic 2-wheel domestic mode when finished.

The single chair offers a superb fully automatic operation for 2-wheel bins being loaded into the 30% split of the RCV.

Both the single and dual sections of the OmniDEL Triple (E) come as standard with intelligent automatic bin-shaking and drop down hopper plates to enable hand-loading.

The OmniDEL Triple (E) is the best available and quietest low level automatic solution for all 70/30 split RCV bodies with a robust build, safe operation and minimal maintenance.

SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 500kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Terberg Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 800 kg
  • Hydraulic Requirements: Self-contained system on binlift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

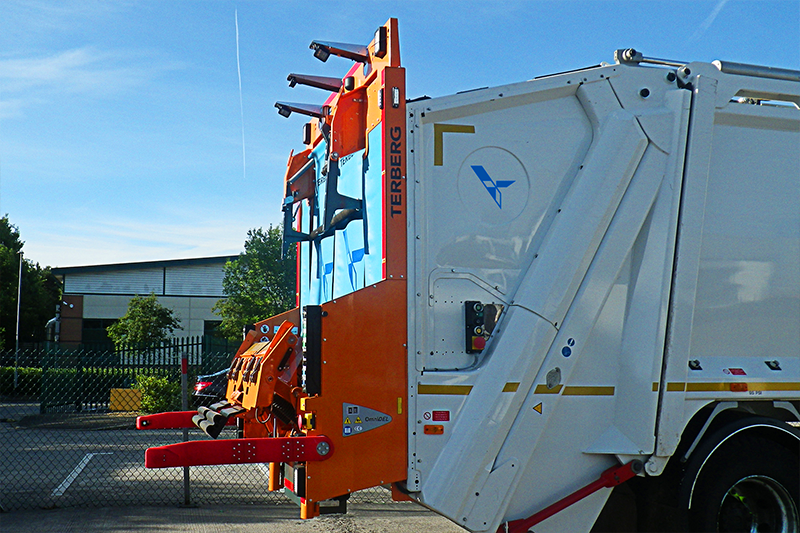

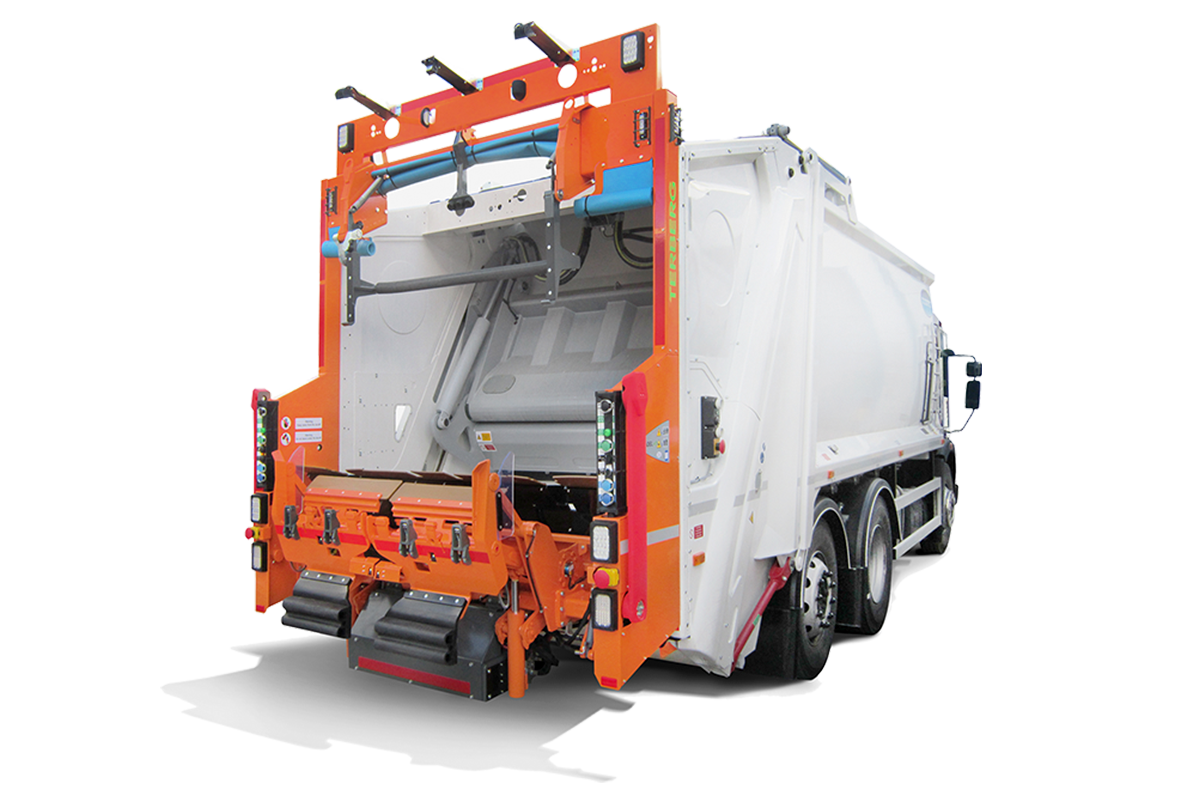

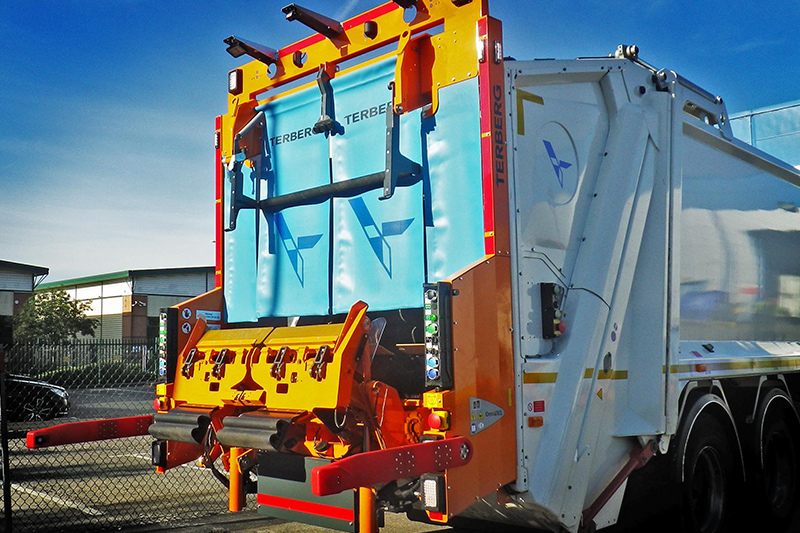

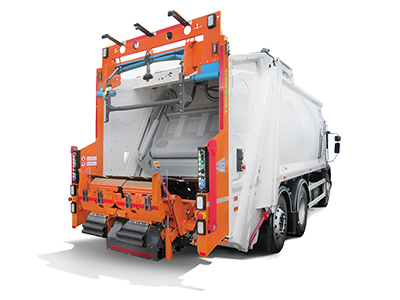

OmniDEL FW

A superbly capable variant on the standard OmniDEL, the FW (Full Width) offers the widest bulk load aperture possible making the entire wifth of the tailgate open for large, hand loaded items.

Offering robust build, minimal maintenance and a safe operation synonymous with the Terberg brand the OmniDEL offers twin split lifting chairs that are perfect for high volume, high density urban collections of two-wheeled bins. OmniDEL also switches seamlessly to 4-wheel commercial container mode to enable emptying of larger containers thanks to our intelligent, time-saving 4-wheel recognition and Auto Gather features.

The OmniDEL FW is a low entry, full tailgate development of our standard OmniDEL that provides a fully featured bin lifting solution with a very generous "throw in" hopper opening of up to 2200mm.

Available as a direct fit to the Olympus tailgate, the OmniDEL FW is perfect for domestic or mixed rounds that have to be flexible enough to handle the occasional item of bulky waste such as a sofa.

The powered refuse plate, made from high strength aluminium, makes loading of bulky items simple and efficient and is interlocked with the packer to ensure safety.

The FW offers the same robust build, safe operation and minimal maintenance as the regular OmniDEL and offers slim rear overhang profile in its transport position.

SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity: 160kg (split) / 500kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Direct
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 768 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

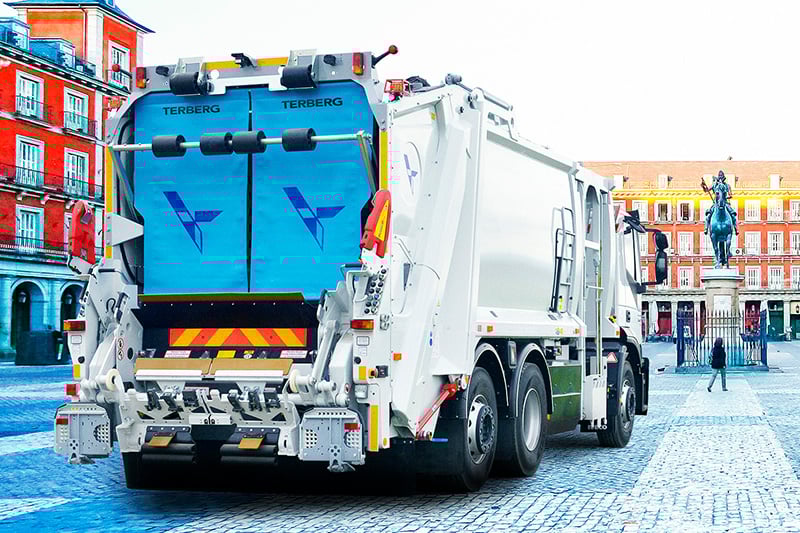

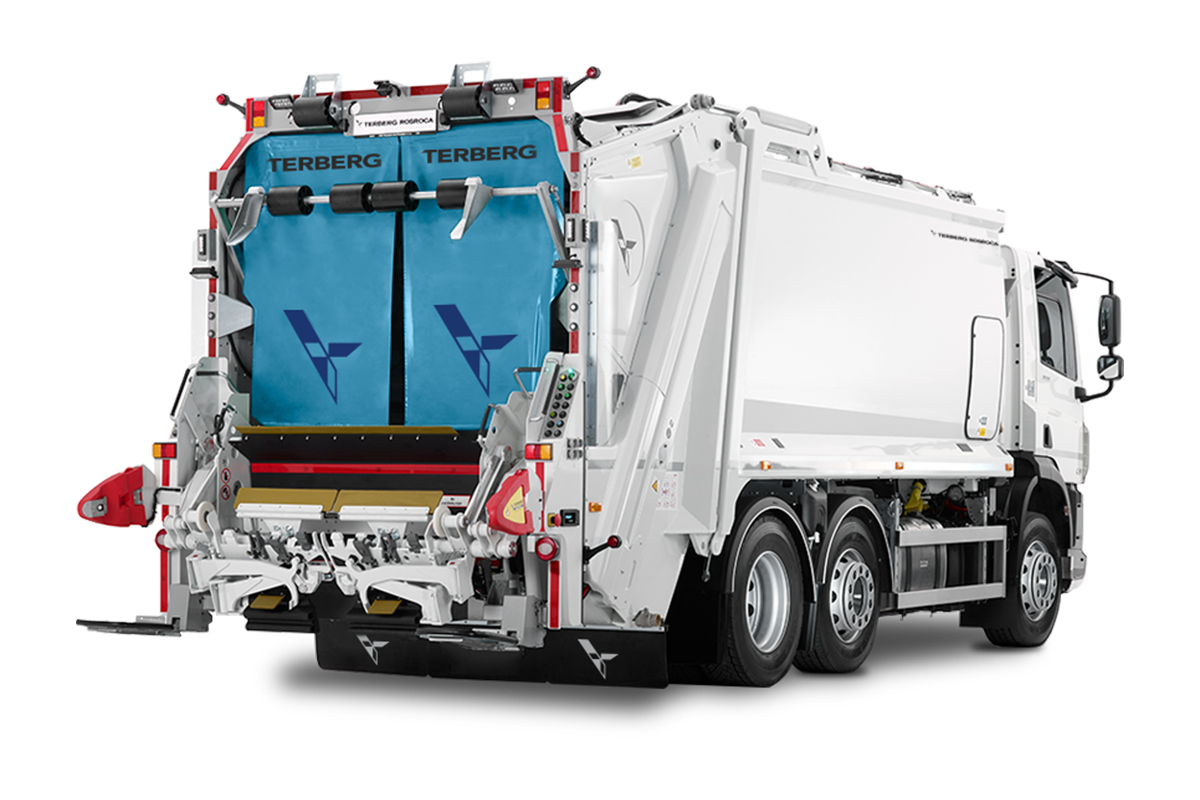

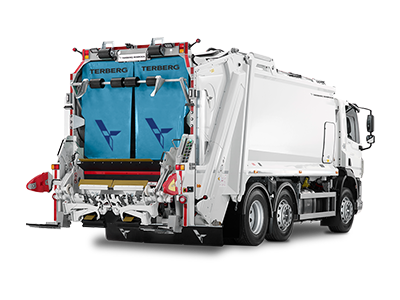

OmniMAX

The OmniMAX provides a superb waste & recycling collection solution with the flexibility to safely handle an impressive range of containers with its robust rear mounted lift system.



Contact Sales

With maximum operational flexibility in mind, the Olympus OmniMAX design offers some fantastic features and efficiency savings benefits



  • Multifunctional bin-lift system to handle a wide variety of container sizes/ types without adjustment
  • Container lowered under gravity using stored kinetic energy gives safer operation, lower noise and saves fuel
  • Low manual loading height, ideal for hand loading of bulky waste
  • Binlift mounting integral to the Olympus tailgate giving a shorter 400mm overhang
  • Flexible lower chair section to support the container, dampen movement and reduce possible damage to container and binlift
SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes



YYYNNNN Bin Icon Strip.svg

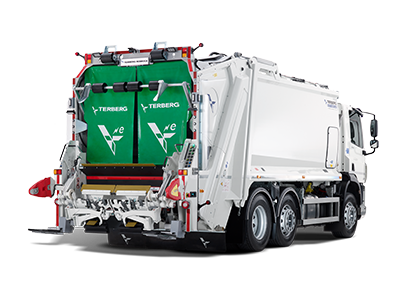

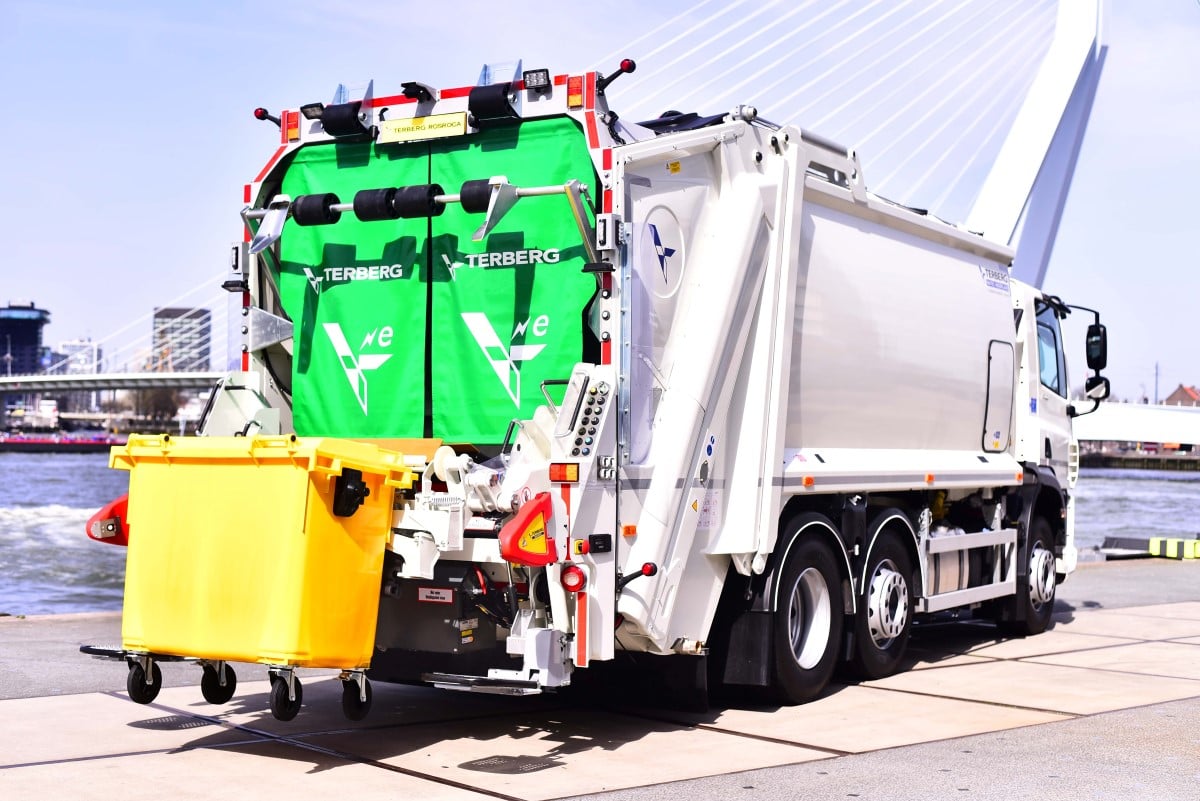

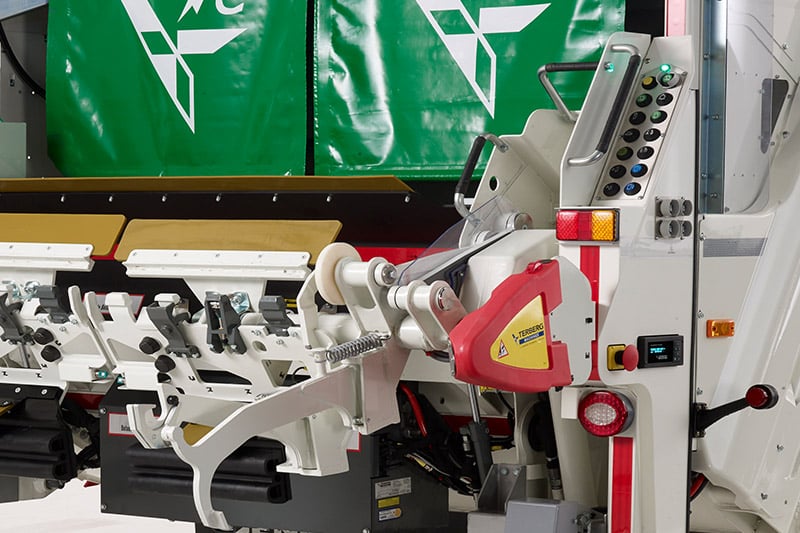

OmniMAX (E)


Terberg's OmniMAX (E) has been developed from the ground up to seamlessly integrate into our Olympus body.


The OmniMAX (E) offers the same top-notch waste collection and recycling solution as the conventional hydraulic version, but with the benefits of a low-noise, low-voltage electric container lifting system. The system allows an impressive range of containers to be handled flexibly and safely with its robust rear-mounted electric lifting system. Designed to provide maximum operating flexibility, the Olympus OmniMAX (E) offers excellent performance, helps save fuel, reduces carbon emissions and improves efficiency.

The Olympus OmniMAX (E) features robust construction and safe automatic operation, and is extremely quiet, generating less than 57 dB (A) when in operation.



  • Multifunctional bin-lift system to handle a wide variety of container sizes/ types without adjustment
  • Container lowered under gravity using stored kinetic energy gives safer operation, lower noise and saves fuel
  • Low manual loading height, ideal for hand loading of bulky waste
  • Binlift mounting integral to the Olympus tailgate giving a shorter 400mm overhang
  • Flexible lower chair section to support the container, dampen movement and reduce possible damage to container and binlift
SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: Autonomous system on container lift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

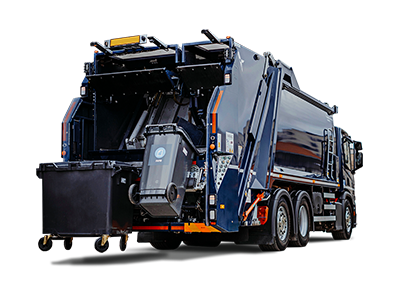

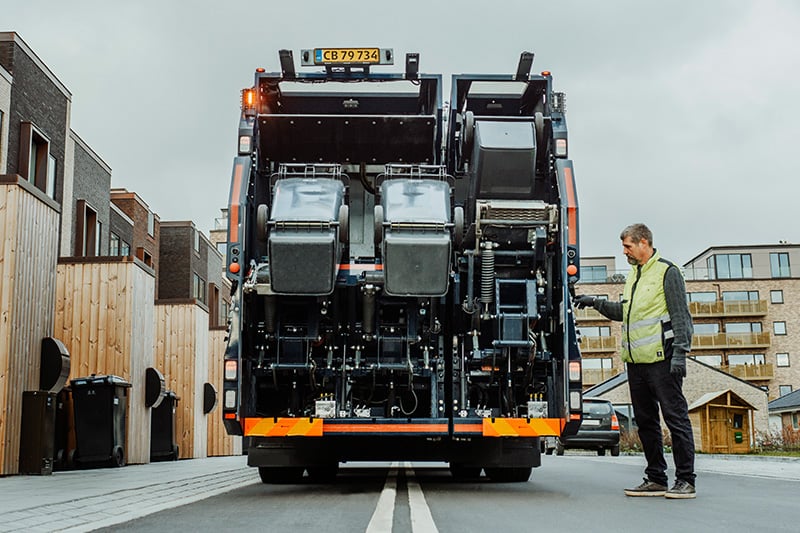

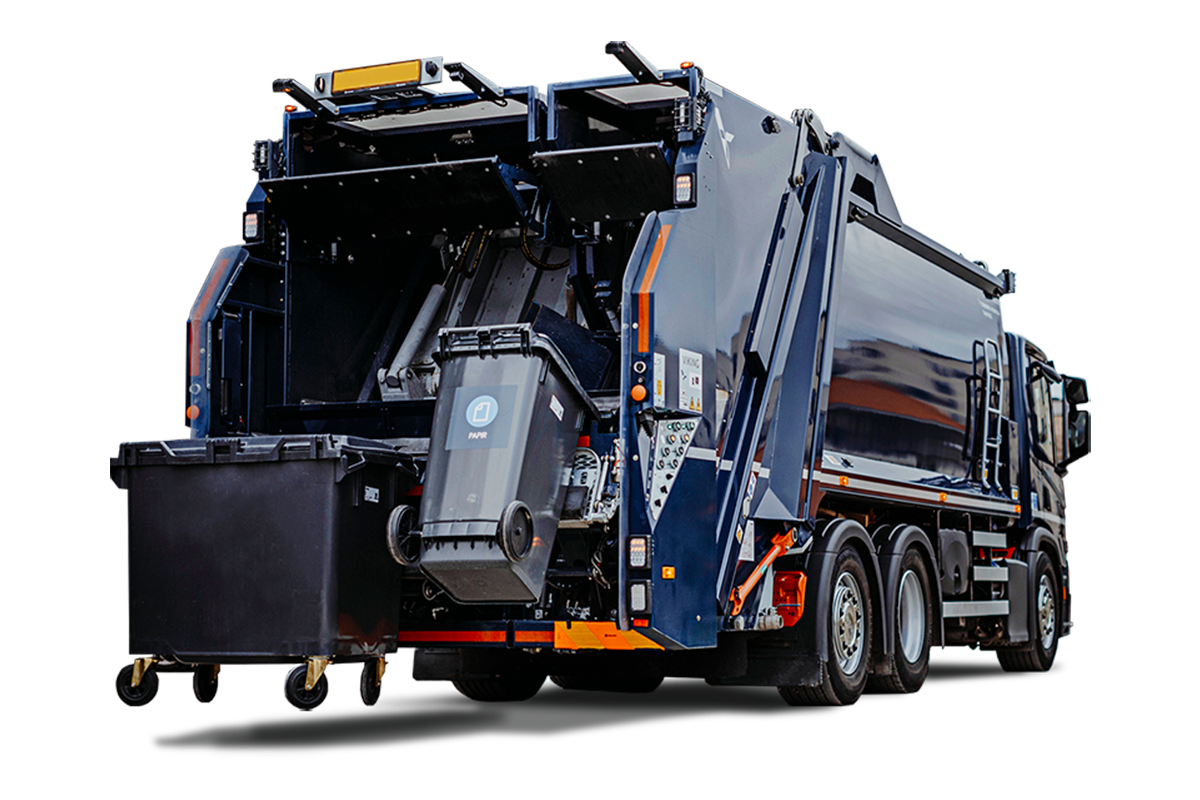

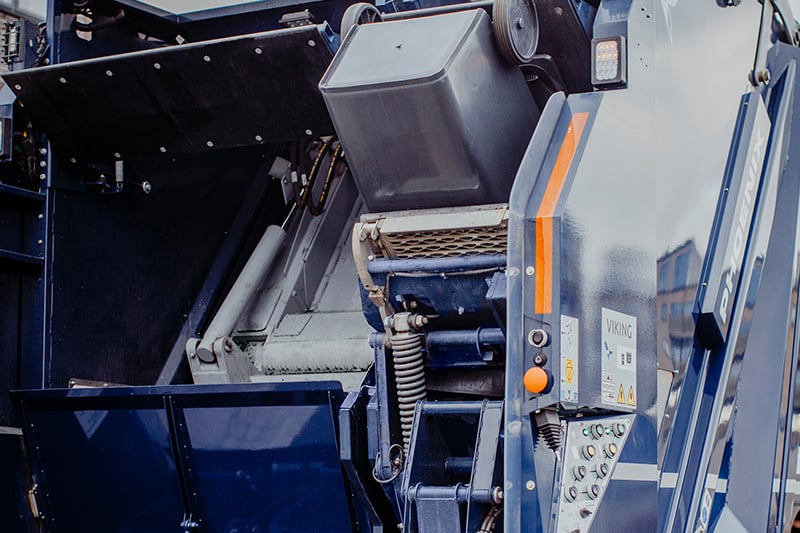

Viking

A bin lift especially designed for the Olympus Twinpack.

This bin lift is an automatic bar and a single chair lift that can operate together as a full width manual bar lift if required. The Viking can be specified with an optional diverter plate in the tailgate which make it possible to empty 2-compartment bins.



  • Unique geometery gives an excellent tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts
  • Single lifting chair handles special 370 litre container including those with stream dividers
  • Multifunctional bin-lift system inclides the ability to empty split compartment containers up to 660 litres
  • Integrated design with the Olympus tailgate gives short overhang
  • Low loading height of 1050mm for hand loading
SPECIFICATIONS

  • Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec, Synchronised chairs 15 sec.
  • Handling Capacity: 170kg (split) / 750kg (linked)
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 1050kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes
