High Level Auto

BIN LIFTING SYSTEMS: HIGH LEVEL AUTOMATIC

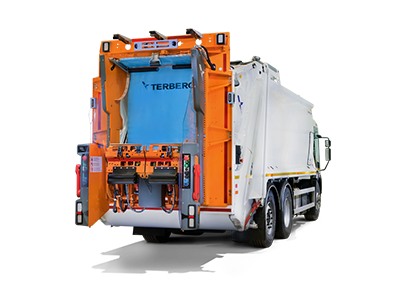

OmniDEKA

Optimises tailgate volume and minimises packing cycles in high density collections



OmniDEKA (E)

High level electric lift to help optimise tailgate volume and reduce packing cycles



TA-DE (E)
TA-DE (E)

Low voltage electric bin lift system, offering split automatic operation

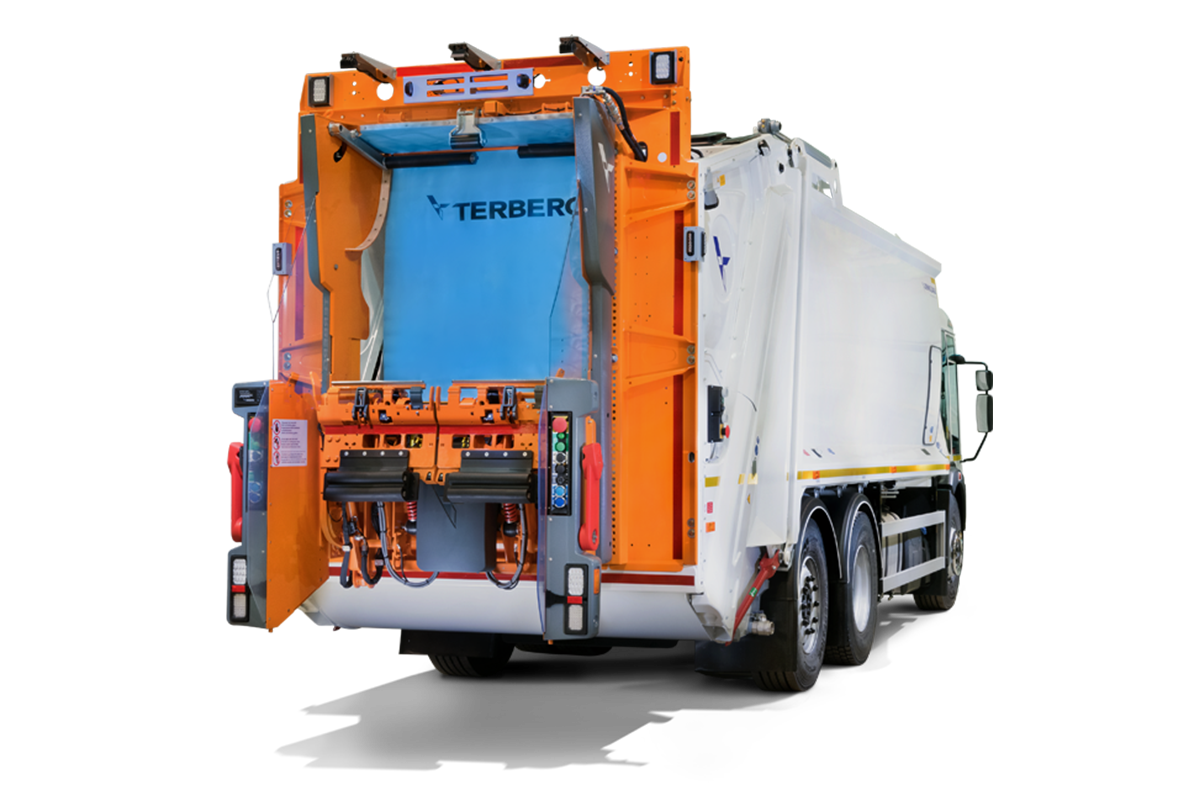

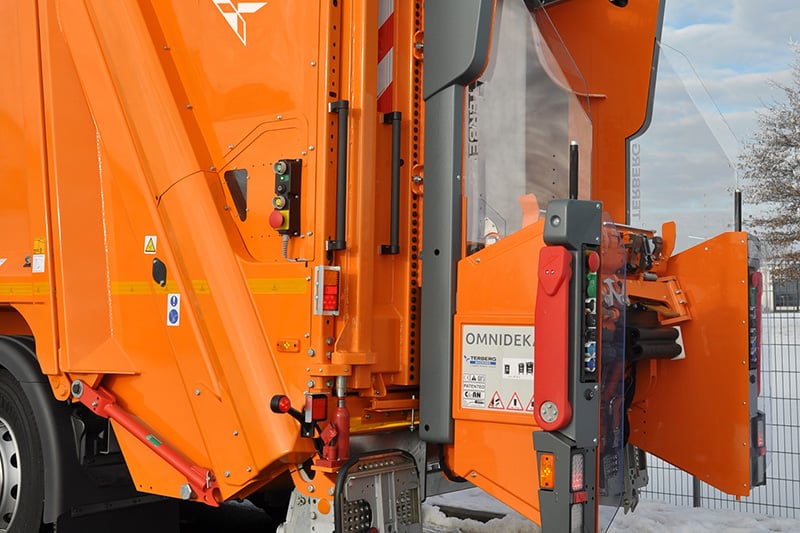

OmniDEKA

Introducing OmniDEKA, the result of intensive development from the ground up to provide a fresh take on how an automatic high-level binlift should be built.



Contact Sales

OmniDEKA comes packed with functionality, flexibility and features, all built upon a foundation of years of experience, generations of bin lifts and listening to customer feedback.


Our front line high level automatic split bin lift and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.


The OmniDEKA offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

SPECIFICATIONS

  • 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 61 dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes



NYYNNNN Bin Icon Strip.svg



Being a high-level lift, the OmniDEKA, especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers. The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge.

Additionally, OmniDEKA cleverly stores Kinetic energy during the lifting cycle to provide an energy free chair return under gravity, which in turn reduces noise, saves energy and keeps wear and tear to a minimum. The OmniDEKA represents the ideal high level automatic solution for our Olympus range of RCVs along with other RCV bodies.

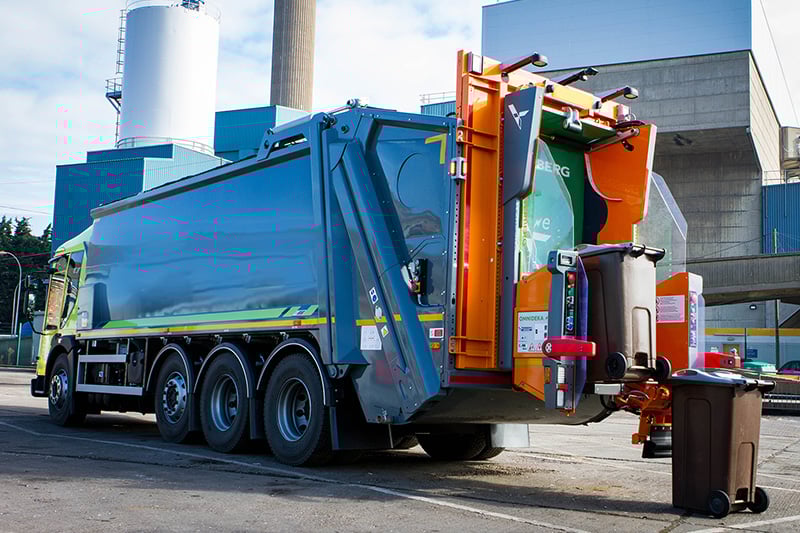

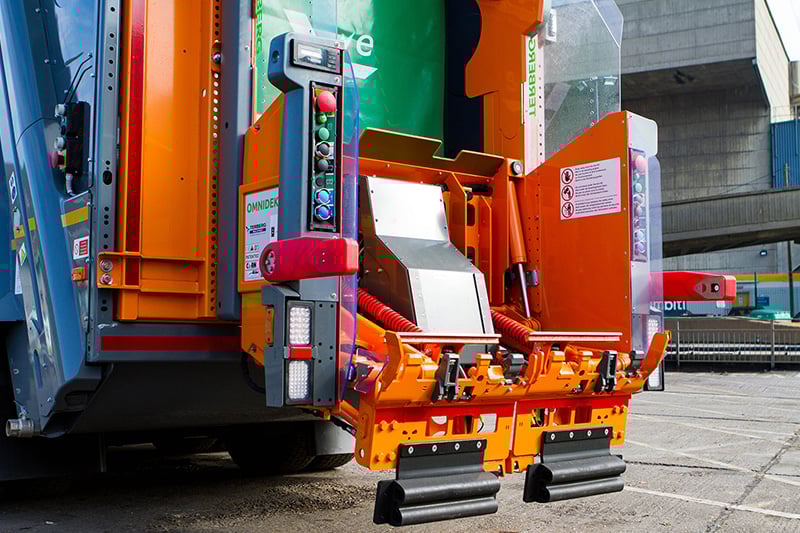

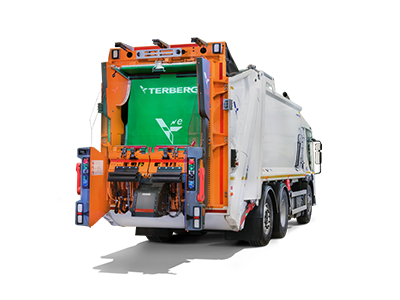

OmniDEKA (E)

The OmniDEKA (E) is the electrically powered version of the OmniDEKA. With all the great features of its hydraulic brother but only requiring a 24v connection to the vehicle. Its low noise rating makes it one of the quietest bin lifts available.

Just like the OmniDEKA, our low voltage, low noise electric OmniDEKA (E) is the product of some innovative thinking from ground up to deliver a high level automatic electric bin lift solution. OmniDEKA (E) comes packed with the same functionality, flexibility and features of the regular OmniDEKA but offers significant noise and emission reductions thanks to our superb 24v electric drive system that requires no additional engine revs during operation.

OmniDEKA (E) is a customer favourite and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.

OmniDEKA (E) offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

Being a high-level lift, the OmniDEKA (E), especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers. The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge.

The OmniDEKA (E) represents the ideal high level automatic solution with the added benefit of low noise levels for our Olympus range of RCVs along with other RCV bodies.

Terberg OmniDEKA E
SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 57dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 680 kg
  • Hydraulic Requirements: Self-contained system on binlift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

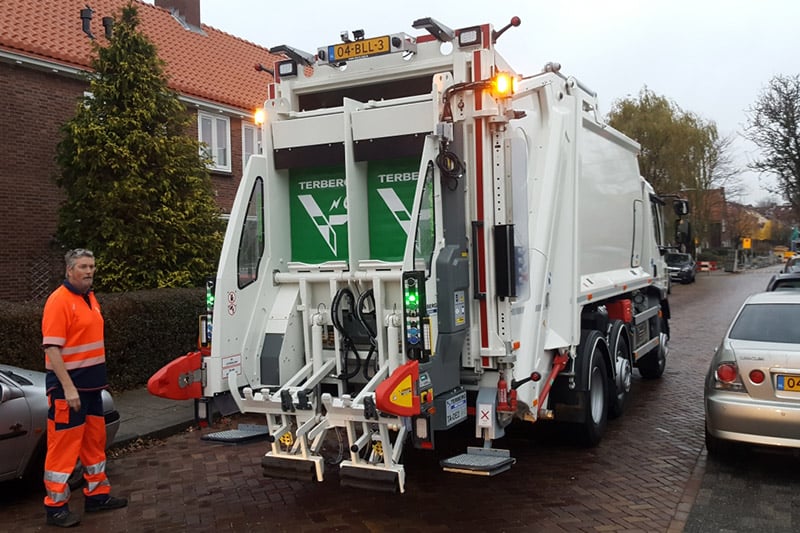

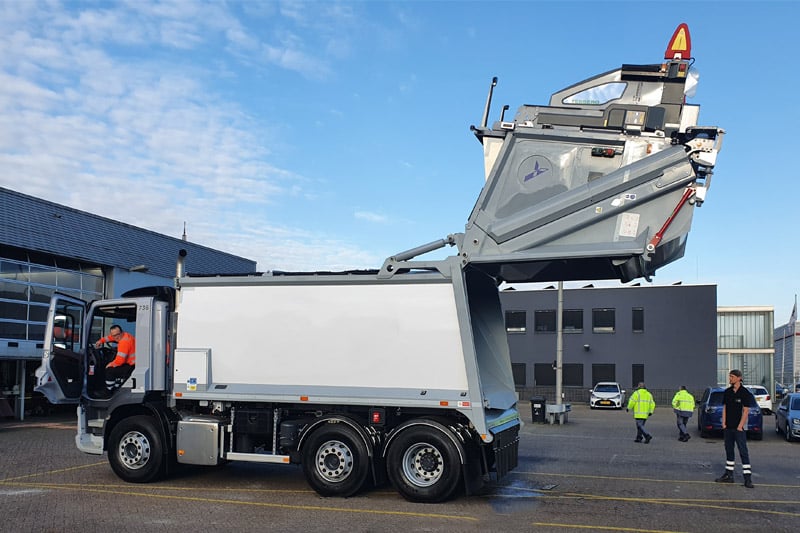

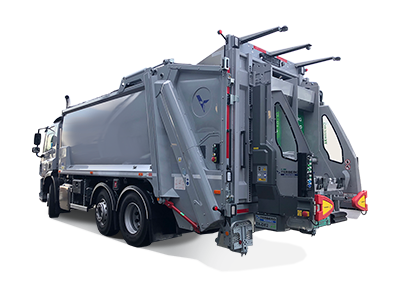

TA-DE (E)


Our efficient high level TA-DE (E) low voltage electric bin lift system, offering split automatic operation.


The TA-DE (E) shares its mechanical design components, efficiency saving features and safety enhancing benefits with the standard TA-DE but requires only 24v chassis electrical power for operation.

The TA-DE is a simple but fully automatic lift offering a straightforward solution to collect 80-340 litre domestic wheeled containers.

The TA-DE (E) can help contribute to significant fuel savings when used on normal RCV collection rounds, depending on driver behaviour, bin to bin distance, distance to tip and other variables.

Whilst being in our standard range the TA-DE still comes as standard with a unique "no kick back" geometry, an automatic container shaker, Packer Cycle Delay Control (PCDC) and a diagnostic display unit.

The TA-DE offers our latest Rear Protective Device (RPD) in compliance with EN1501.5 to protect the user and public during automatic domestic operation.

Environmentally friendly performance comes as standard and the lift is designed to be compatible with future developments in electric & hybrid RCV technologies.

Our electric TA-DE (E) offers practically silent operation producing less than 57 dB(A) of noise.

SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 57dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 680 kg
  • Hydraulic Requirements: Self-contained system on binlift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes
