FRONT LOADERS

HS Front Loaders' have top-class performance and manoeuvrability: Whether with a fixed container or as a changeable CWS unit with standardised containers,
HS front loaders can handle waste volumes of 33 to 43 m³

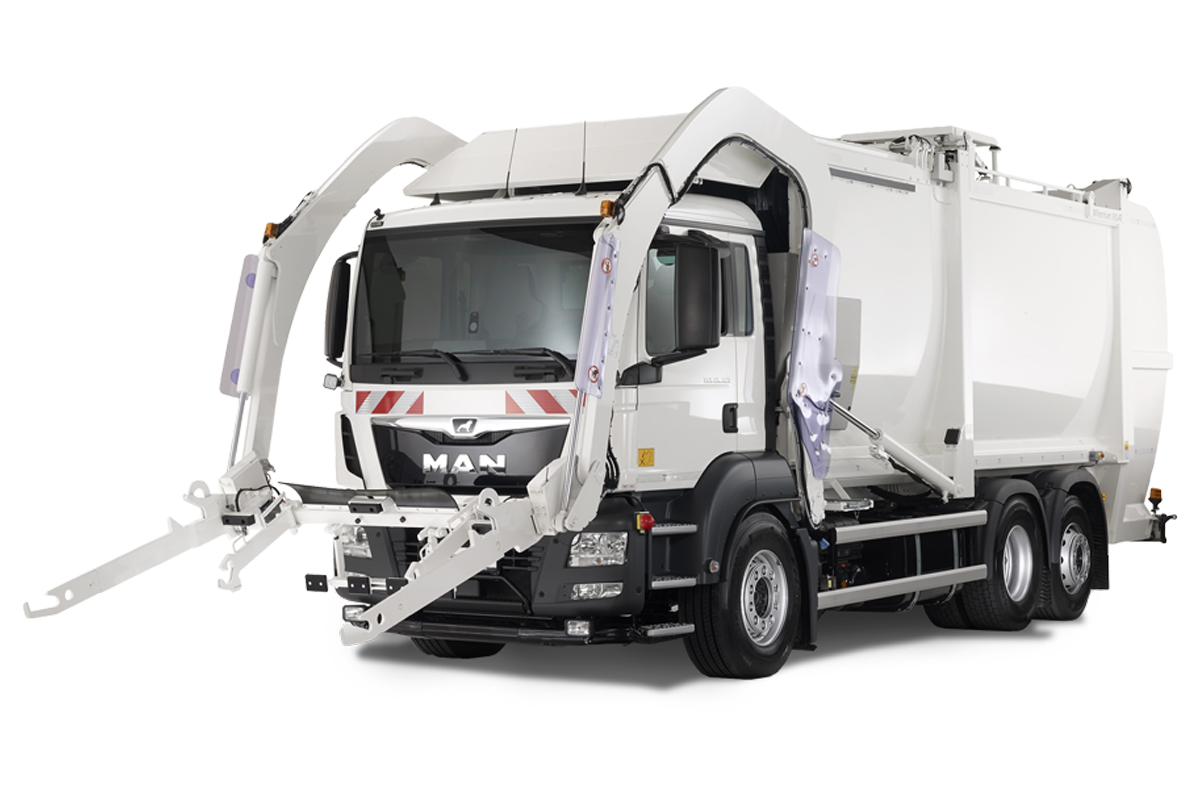

Olympus Millennium

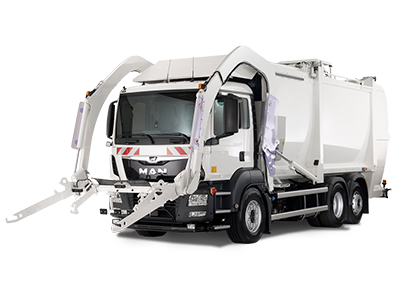

Millennium

Single-person, large volume front loader

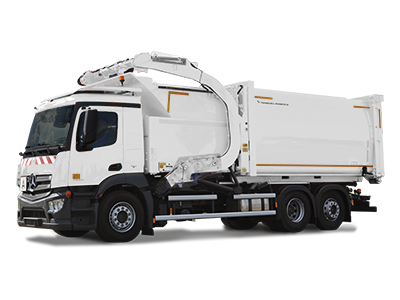

Megaline
Megaline

Flexible front loader with container swap system (CWS)



MILLENNIUM XXL

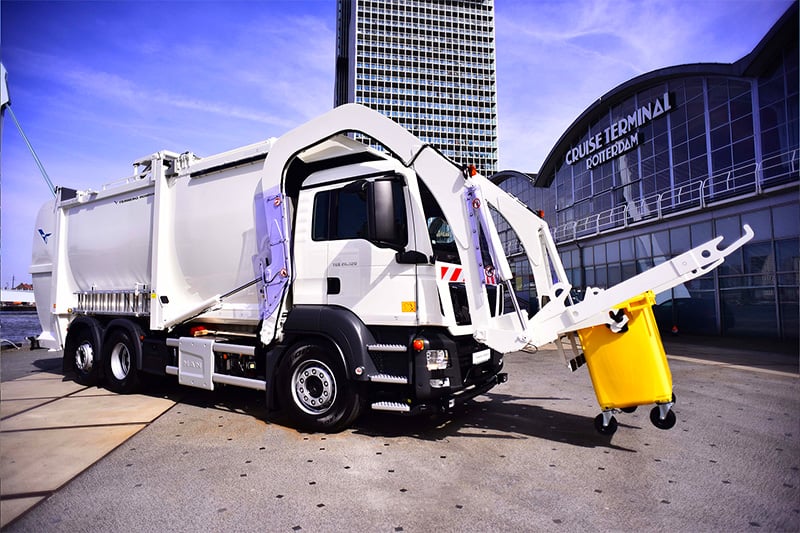

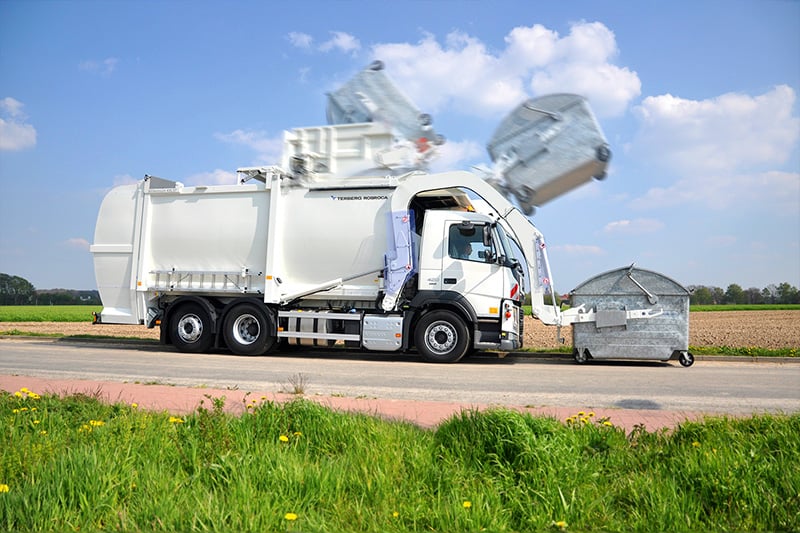

THE MILLENNIUM FRONT-END LOADER RANGE IS A SINGLE-PERSON OPERATION, ECONOMICAL ANSWER TO THE REQUIREMENTS OF LARGE VOLUME COMMERCIAL AND INDUSTRIAL WASTE COLLECTIONS.



Contact Sales

The process chain for collection and transport is efficiently closed and the need for skip loaders removed. The Millennium comfortably offers volumes up to 43m3, with the 37m3 XXL option mounted on three axles, whilst similar vehicles might require four axles. With the smallest turning circle in the market (with a short wheelbase of 3,900 mm) the Millenium turn in 3 metres less than comparable competitors (measured on the inner turning circle).

The Millenium front loaders also offer 30 percent more volume than comparable products of the same length.



SPECIFICATIONS

  • Payload: Up to 13t
  • Axle Configuration: 3 & 4 axle variants
  • Body Volume: 33 m³ to 43 m³
  • Container Handling: 120 l to 10 m³
  • Lifting Capacity: 3600 kg
  • In-Cab Control Panel: MD4 controller, 7 or 10" touch screen
  • Arm Type: Front loader lifter
  • Lifter Chair Configuration: Combination Fork for FEL containers and 1100 l flat lid bins
  • Container Swap System
    (CWS) option: No
  • Remote Diagnostics: Remote maintenance via Bluetooth



YYYNYNN Bin Icon Strip.svg

Our space saving MD4 controller is ergonomically mounted in the driver’s cab without impairing their field of vision. The function parameters and event messages are clearly and comprehensibly displayed via the 7 or 10 inch touch screen.

The MD4 can also be accessed via Bluetooth for remote maintenance. The MD4 also enables you to retrieve saved PDF documents such as operating instructions and spare parts lists.

Our lifting system cleverly stows away above the superstructure to give an unrestricted field of vision.

The Millenium offers many safety features including remote control of lifting along with infrared work-area protection, a safety barrier on the roof of the superstructure and a safety handle at the access point under the maintenance door.

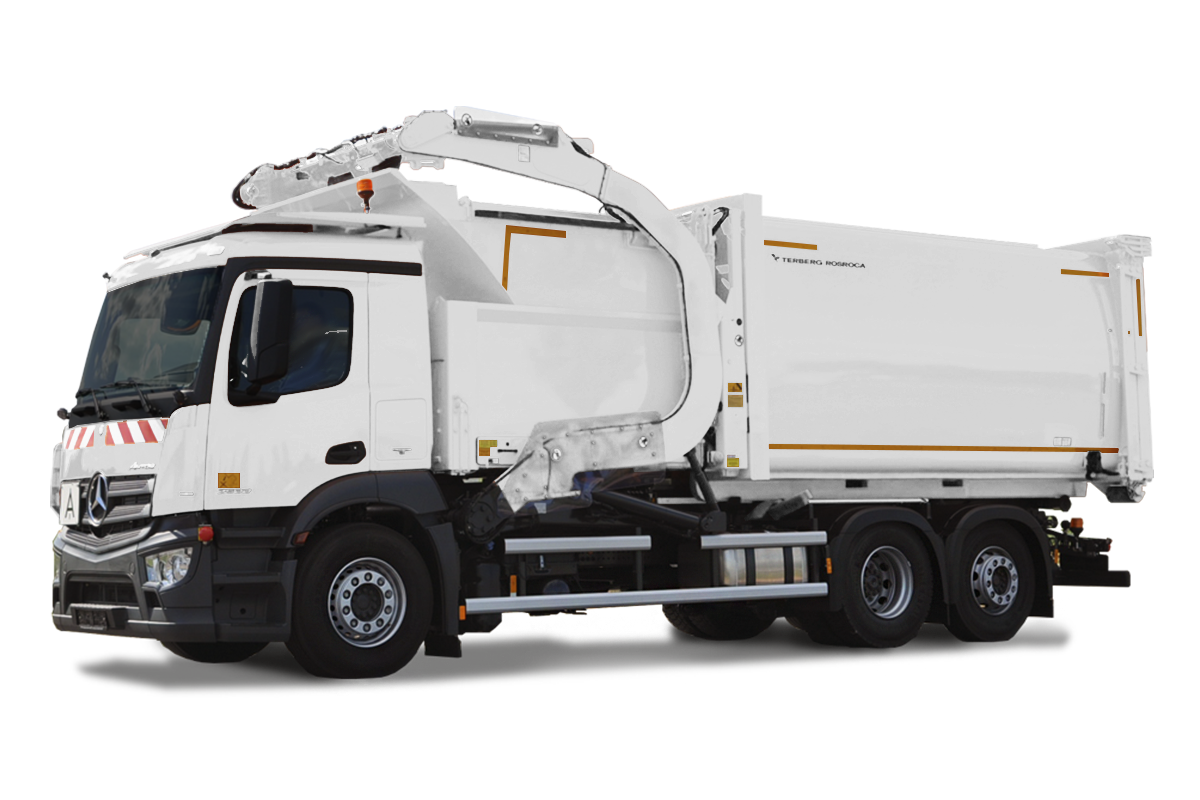

Megaline

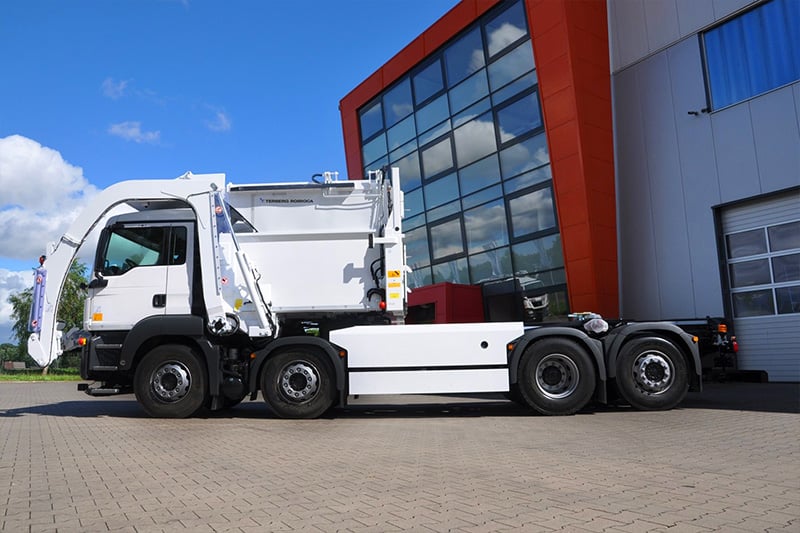

The Megaline front-end loader range offers single-person operation together with our Container Swapping (CWS) technology to provide a truly economical answer to the requirements of large volume commercial and industrial waste collections.

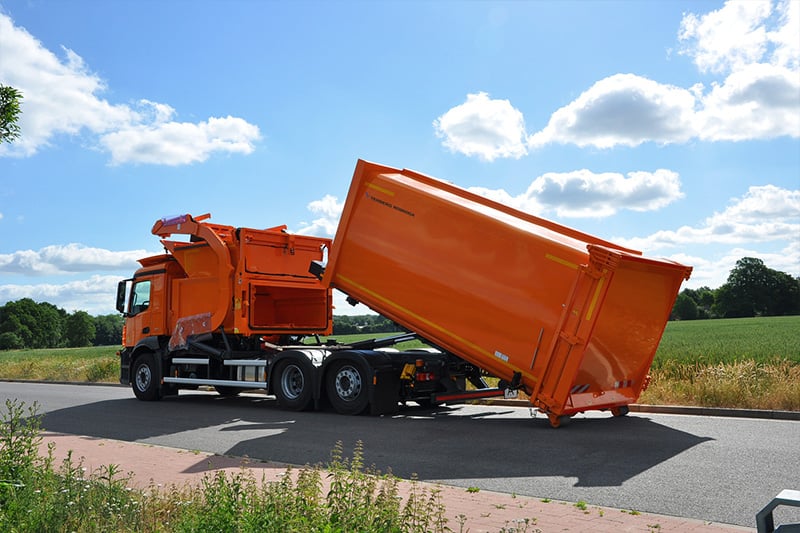

CWS means that the dedicated Megaline lifting and collection equipment can de-mount its body once full and continue the collection rounds with an empty body, whilst a less specialised vehicle can transport one or more full CWS bodies to landfill for emptying thereby increasing efficiencies and minimising non-productive time of the collection vehicle.

In situations like this it makes little financial sense to have a collection equipment travelling this journey when it could be employed collecting more materials.

Megaline's CWS container are fully compatible with ACTS transport systems and meet DIN 30722

Our space saving MD4 controller is ergonomically mounted in the driver’s cab without impairing their field of vision.

The function parameters and event messages are clearly and comprehensibly displayed via the 7 or 10 inch touch screen.

The MD4 can also be accessed via Bluetooth for remote maintenance. The MD4 also enables you to retrieve saved PDF documents such as operating instructions and spare parts lists.

SPECIFICATIONS

  • Payload: Up to 10.8t
  • Axle Configuration: 3 & 4 axle variants
  • Body Volume: 26 m³ to 31,5 m³
  • Container Handling: 120 l to 8 m³
  • Lifting Capacity: 2500 kg
  • In-Cab Control Panel: MD4 controller, 7 or 10" touch screen
  • Arm Type: Front loader lifter
  • Lifter Chair Configuration: Combination Fork for FEL containers and 1100 l flat lid bins
  • Container Swap System
    (CWS) option: Yes, 5-6m length
  • Remote Diagnostics: Remote maintenance via Bluetooth
